3. Consider the circuit shown in figure 3. a. Using Mesh Analysis, determine the mesh currents [40]. b. Using your resul

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

3. Consider the circuit shown in figure 3. a. Using Mesh Analysis, determine the mesh currents [40]. b. Using your resul

Post by answerhappygod »

3 Consider The Circuit Shown In Figure 3 A Using Mesh Analysis Determine The Mesh Currents 40 B Using Your Resul 1
3 Consider The Circuit Shown In Figure 3 A Using Mesh Analysis Determine The Mesh Currents 40 B Using Your Resul 1 (107.14 KiB) Viewed 67 times

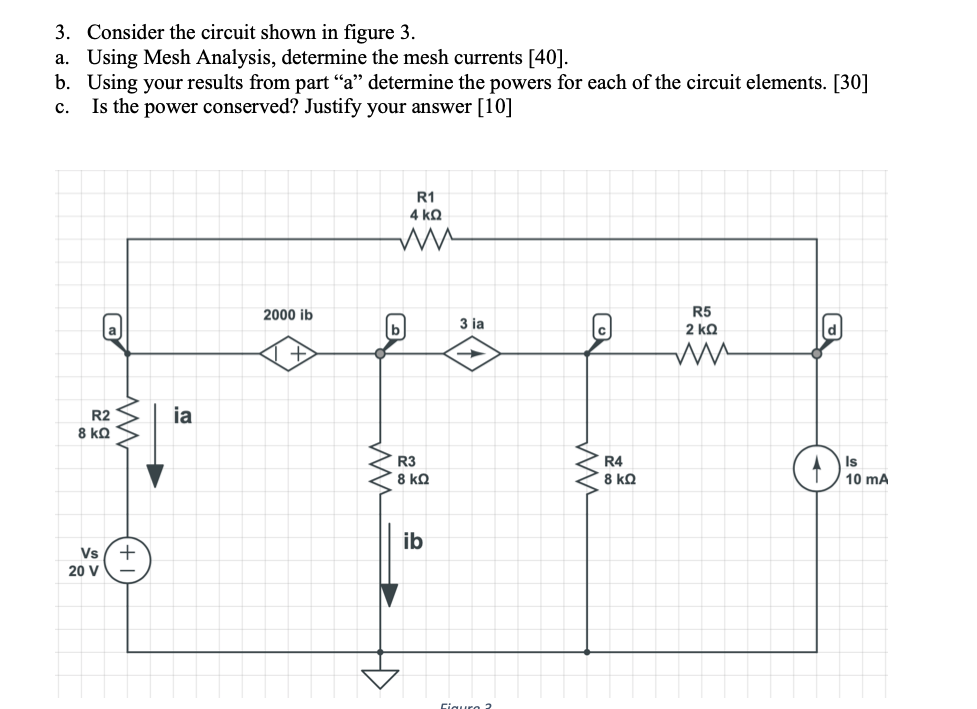

3. Consider the circuit shown in figure 3. a. Using Mesh Analysis, determine the mesh currents [40]. b. Using your results from part “a” determine the powers for each of the circuit elements. [30] Is the power conserved? Justify your answer [10] c. R1 4 ΚΩ w 2000 ib R5 2 ΚΩ b 3 ia d + ia R2 8 kg 6 M w R3 8 ΚΩ R4 8 ΚΩ Is 10 mA ib Vs 20 V Giauro 2
