2. Consider the circuit shown in figure 2. You want to place a load resistance across a-b terminals. a. Find the load re

[answerhappygod]

2 Consider The Circuit Shown In Figure 2 You Want To Place A Load Resistance Across A B Terminals A Find The Load Re 1 (98.37 KiB) Viewed 53 times

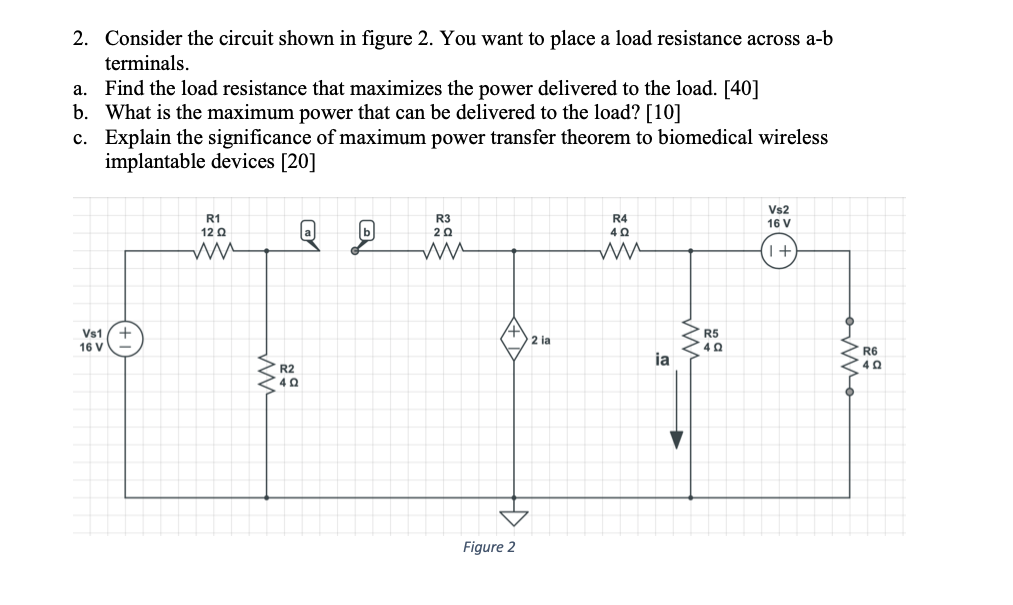

2. Consider the circuit shown in figure 2. You want to place a load resistance across a-b terminals. a. Find the load resistance that maximizes the power delivered to the load. [40] b. What is the maximum power that can be delivered to the load? [10] c. Explain the significance of maximum power transfer theorem to biomedical wireless implantable devices [20] Vs2 16 V R1 120 w a b R3 20 w R4 40 w 1 + Vs1 16 V 2 la R5 40 w ia R6 40 R2 40 V Figure 2
