(5 Pts) A. Consider the Common-Source (CS) amplifier shown
below.
Sketch/draw and properly label the small-signal high frequency
equivalent circuit of the given
CS amplifier.

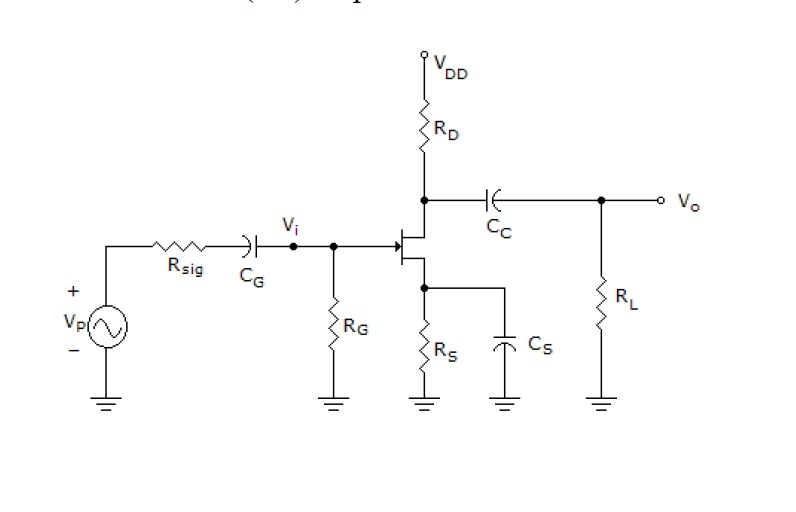

5 Pts A Consider The Common Source Cs Amplifier Shown Below Sketch Draw And Properly Label The Small Signal High F 1 (21.14 KiB) Viewed 81 times
v DD Ro HE Cc V. Vi Rsig 카 CG + RL Vpl RG 'Rg HE Cs 1
