From the circuit shown in the figure When the electronic switch is operated, there is a voltage drop of 2.5 V, with sign

Post by answerhappygod »

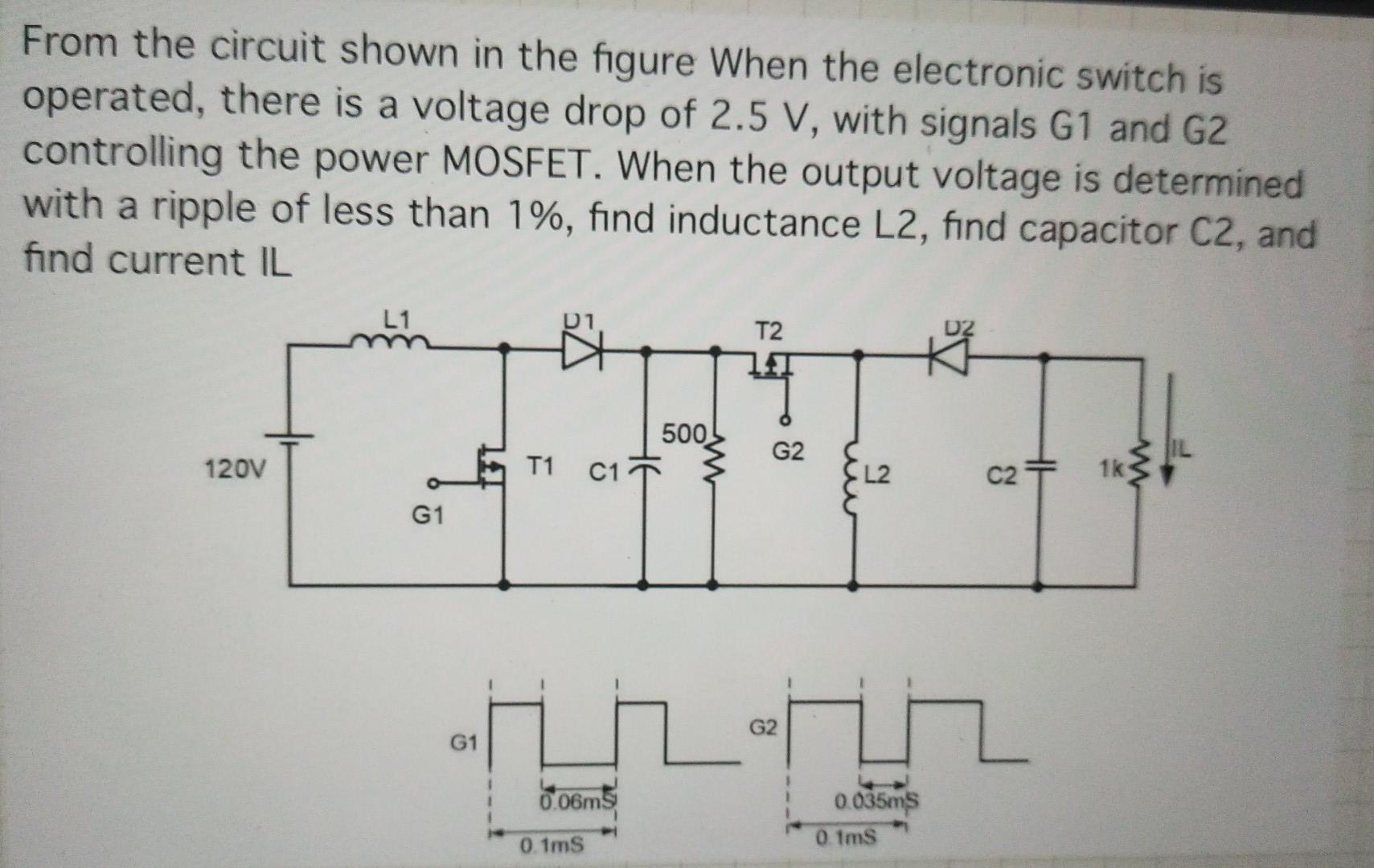

From The Circuit Shown In The Figure When The Electronic Switch Is Operated There Is A Voltage Drop Of 2 5 V With Sign 1
From The Circuit Shown In The Figure When The Electronic Switch Is Operated There Is A Voltage Drop Of 2 5 V With Sign 1 (151.61 KiB) Viewed 26 times
From the circuit shown in the figure When the electronic switch is operated, there is a voltage drop of 2.5 V, with signals G1 and G2 controlling the power MOSFET. When the output voltage is determined with a ripple of less than 1%, find inductance L2, find capacitor C2, and find current IL L1 T2 500 G2 IL 120V T1 C17 L2 C2 16 w G1 G2 G1 1 0.06ms 0035m 0.1ms 0.1ms
