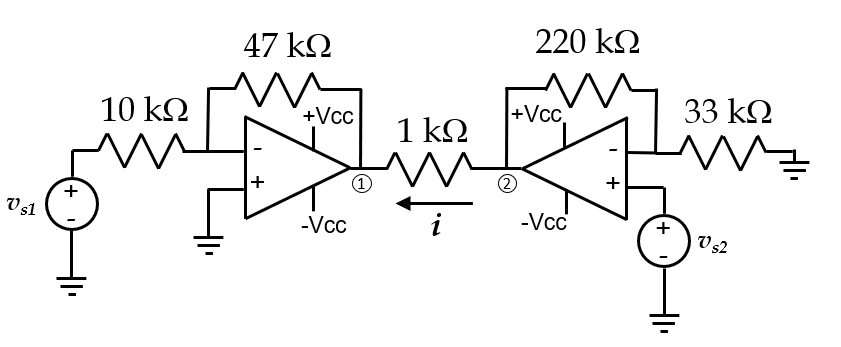

Both voltage sources are at 1 V.
1. What is the voltage (in V) at node 1?
2. What is the voltage (in V) at node 2?
3. What is the current i (in mA) as indicated in the
figure?
4. If Vcc is 6 V, what will be the current i (in mA)?
47 k2 220 k2 10 ko +Vcc +Vcc. 33 k2 1k2 W 송 + + ① + s1 -Vcc -VCC + 0 2
