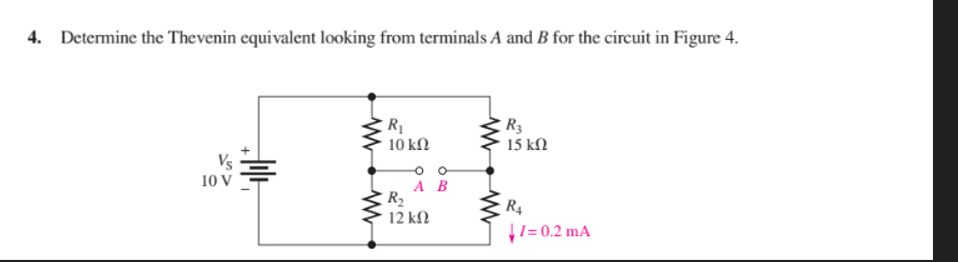

4. Determine the Thevenin equivalent looking from terminals A and B for the circuit in Figure 4. R 10 ΚΩ ş R3 15 ΚΩ Vs 1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

4. Determine the Thevenin equivalent looking from terminals A and B for the circuit in Figure 4. R 10 ΚΩ ş R3 15 ΚΩ Vs 1

Post by answerhappygod »

1
1 (38.54 KiB) Viewed 20 times
Hello, I have been stuck, on this questions. If I can get help
that will be great.
4. Determine the Thevenin equivalent looking from terminals A and B for the circuit in Figure 4. R 10 ΚΩ ş R3 15 ΚΩ Vs 10 V WWW A B R2 12k12 WW R4 1=0.2 mA
