A logic circuit has two inputs, Clock and Start, and two outputs fand g. The behavior of the circuit is described by the

[answerhappygod]

A Logic Circuit Has Two Inputs Clock And Start And Two Outputs Fand G The Behavior Of The Circuit Is Described By The 1 (27.93 KiB) Viewed 88 times

Please explain in the truth table and show how to write
function of F and G

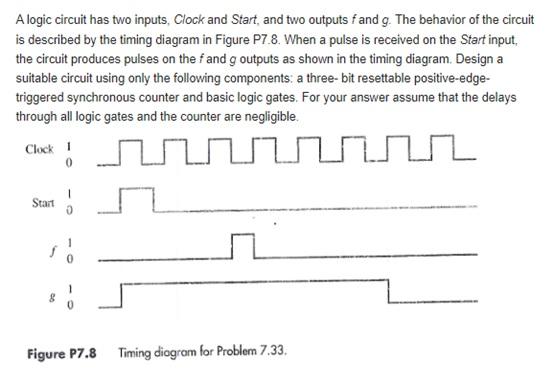

A logic circuit has two inputs, Clock and Start, and two outputs fand g. The behavior of the circuit is described by the timing diagram in Figure P7.8. When a pulse is received on the Start input, the circuit produces pulses on the fand g outputs as shown in the timing diagram Design a suitable circuit using only the following components: a three-bit resettable positive-edge- triggered synchronous counter and basic logic gates. For your answer assume that the delays through all logic gates and the counter are negligible. Clock 1 0 nurinn Start Figure P7.8 Timing diagram for Problem 7.33,
