1. Calculate V1, V2, V3, 11, 12 and 13 from the given circuit below and analyze which resistor has the highest magnitude

Post by answerhappygod »

1 Calculate V1 V2 V3 11 12 And 13 From The Given Circuit Below And Analyze Which Resistor Has The Highest Magnitude 1
1 Calculate V1 V2 V3 11 12 And 13 From The Given Circuit Below And Analyze Which Resistor Has The Highest Magnitude 1 (36.69 KiB) Viewed 40 times

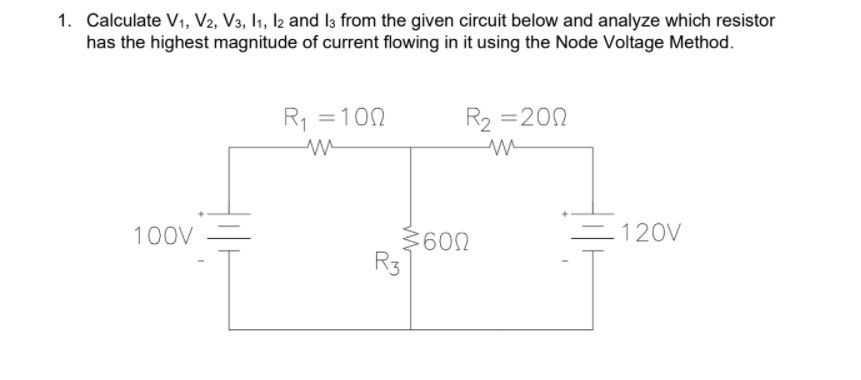

1. Calculate V1, V2, V3, 11, 12 and 13 from the given circuit below and analyze which resistor has the highest magnitude of current flowing in it using the Node Voltage Method. R1 = 100 w R2 = 2002 w 100V = 120V 36012 R3
