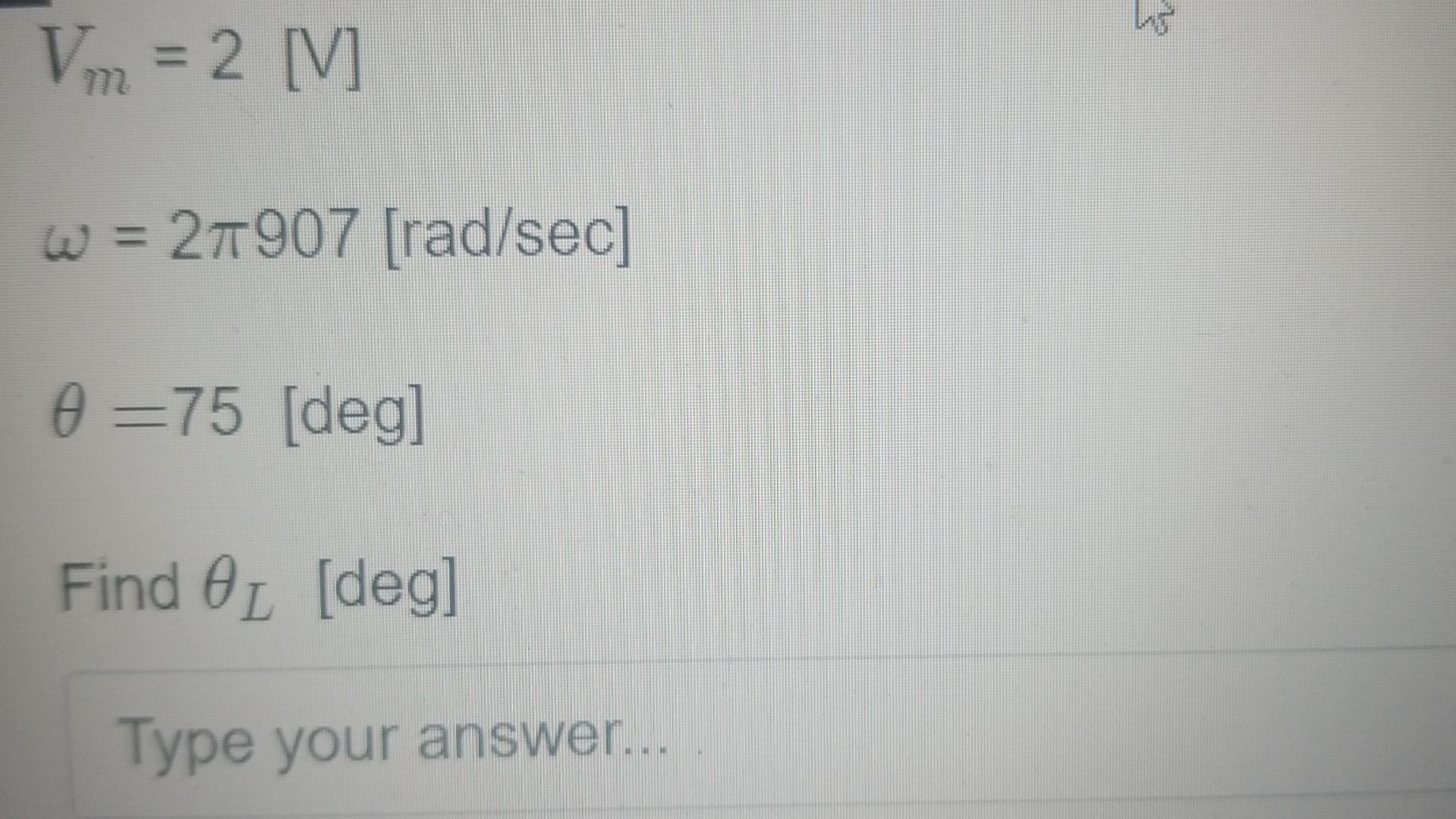

- Ho V 2 V W 21907 Rad Sec 0 75 Deg Find Ol Deg Type Your Answer Vr T I T M R V T Vmcos Wt 0 1 (279.88 KiB) Viewed 17 times
- Ho V 2 V W 21907 Rad Sec 0 75 Deg Find Ol Deg Type Your Answer Vr T I T M R V T Vmcos Wt 0 2 (92.66 KiB) Viewed 17 times

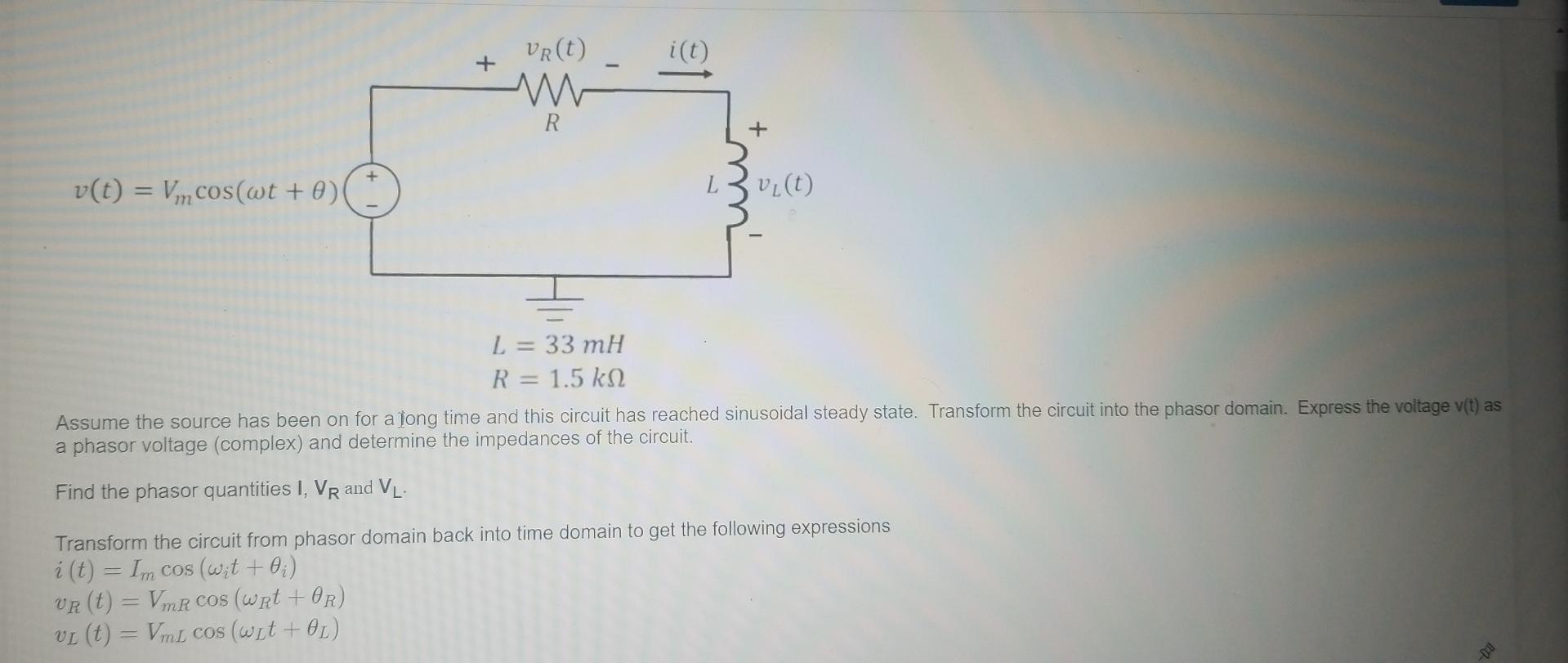

Vr(t) i(t) + M R. + v(t) = Vmcos(wt+0) - vl(t) L = 33 mH R = 1.5 k 2 Assume the source has been on for a long time and this circuit has reached sinusoidal steady state. Transform the circuit into the phasor domain. Express the voltage v(t) as a phasor voltage (complex) and determine the impedances of the circuit. Find the phasor quantities I, VR and VL. Transform the circuit from phasor domain back into time domain to get the following expressions i(t) = Im cos (wit + 0;) vr(t) = VmR COS (wRt + OR) vi (t) = VmI cos (wit + OL)
