Q2: A galvanometer has a current sensitivity of the order of 0.1 mA (full-scale deflection current) and a small internal

Post by answerhappygod »

Q2 A Galvanometer Has A Current Sensitivity Of The Order Of 0 1 Ma Full Scale Deflection Current And A Small Internal 1
Q2 A Galvanometer Has A Current Sensitivity Of The Order Of 0 1 Ma Full Scale Deflection Current And A Small Internal 1 (169.39 KiB) Viewed 22 times

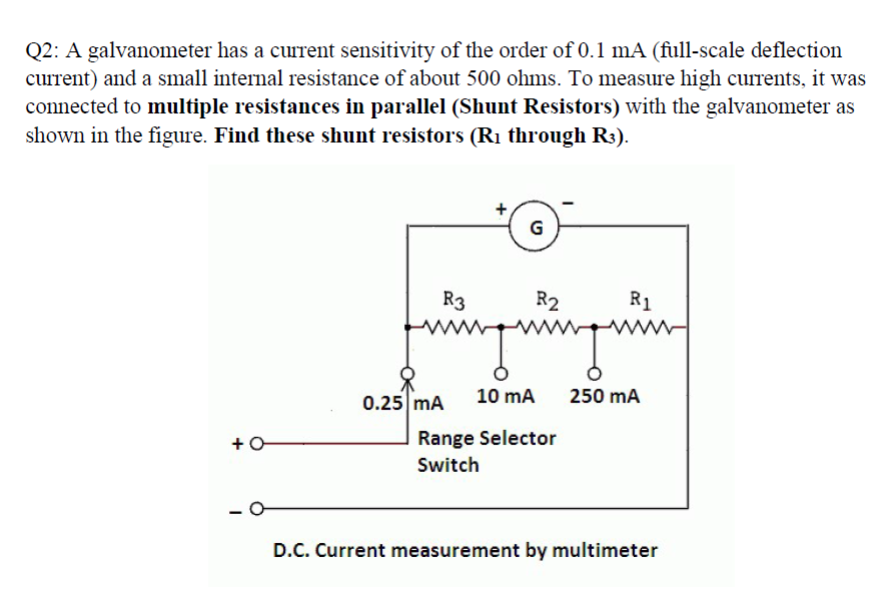

Q2: A galvanometer has a current sensitivity of the order of 0.1 mA (full-scale deflection current) and a small internal resistance of about 500 ohms. To measure high currents, it was connected to multiple resistances in parallel (Shunt Resistors) with the galvanometer as shown in the figure. Find these shunt resistors (Ri through R3). G R3 R2 Ri w w mingen 250 mA 0.25 mA 10 mA Range Selector Switch +O D.C. Current measurement by multimeter
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
