j1 Ω 2 Ω 122 + 10/0° ve j2 Ω j2 Ω 122 1 V w TO Figure 1 The network in Figure 1 operates at 60 Hz. a) Find the KVL equat

Post by answerhappygod »

1
1 (39.35 KiB) Viewed 21 times

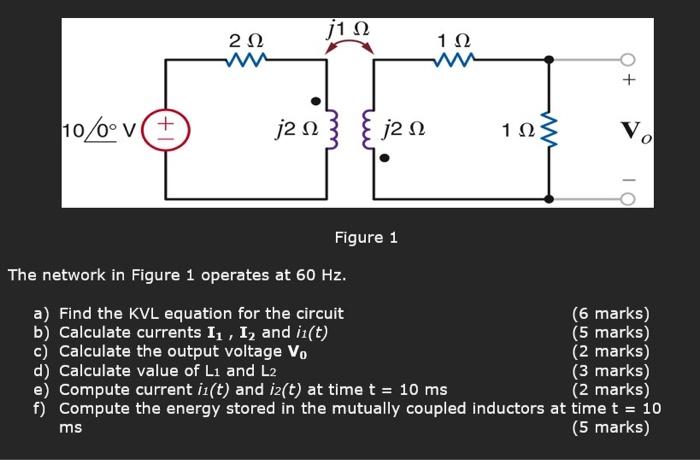

j1 Ω 2 Ω 122 + 10/0° ve j2 Ω j2 Ω 122 1 V w TO Figure 1 The network in Figure 1 operates at 60 Hz. a) Find the KVL equation for the circuit (6 marks) b) Calculate currents Ii , I, and i1(t) (5 marks) c) Calculate the output voltage V, (2 marks) d) Calculate value of Li and L2 (3 marks) e) Compute current i1(t) and iz(t) at time t = 10 ms (2 marks) f) Compute the energy stored in the mutually coupled inductors at time t = 10 ms (5 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
