Q4. In the circuit shown in Fig.3 determine the following (a) The battery delivered a total current of 10 mA with an int

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q4. In the circuit shown in Fig.3 determine the following (a) The battery delivered a total current of 10 mA with an int

Post by answerhappygod »

Q4 In The Circuit Shown In Fig 3 Determine The Following A The Battery Delivered A Total Current Of 10 Ma With An Int 1
Q4 In The Circuit Shown In Fig 3 Determine The Following A The Battery Delivered A Total Current Of 10 Ma With An Int 1 (15.28 KiB) Viewed 32 times

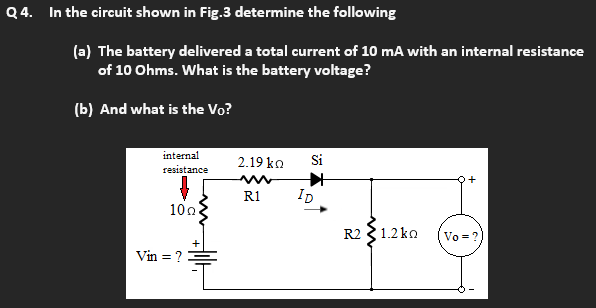

Q4. In the circuit shown in Fig.3 determine the following (a) The battery delivered a total current of 10 mA with an internal resistance of 10 Ohms. What is the battery voltage? (b) And what is the Vo? internal resistance 2.19 ko Si 字 R1 ID 100 R21.2k2 Vo = ? Vin = ?
