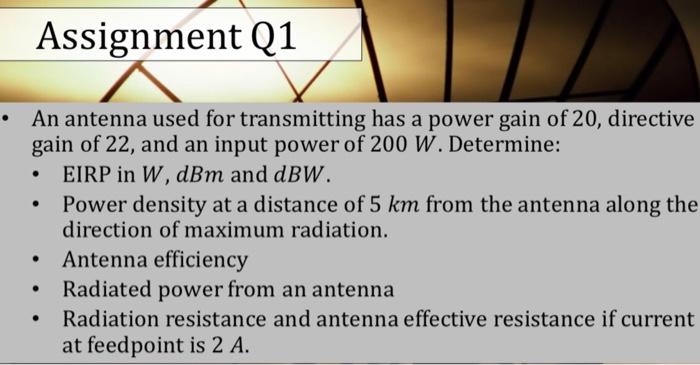

Assignment Q1 . . • An antenna used for transmitting has a power gain of 20, directive gain of 22, and an input power of 200 W. Determine: EIRP in W, dBm and dBW. Power density at a distance of 5 km from the antenna along the direction of maximum radiation. Antenna efficiency Radiated power from an antenna Radiation resistance and antenna effective resistance if current at feedpoint is 2 A. . .

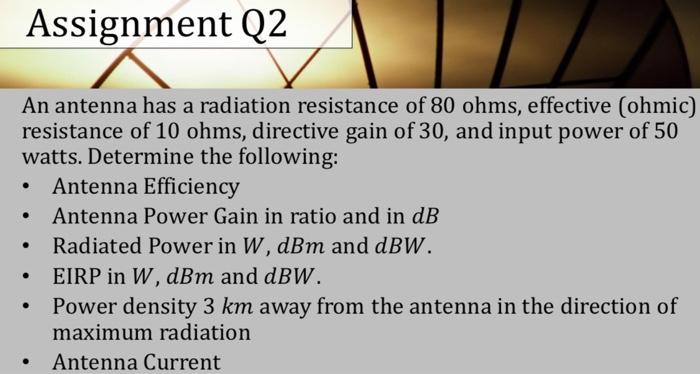

Assignment Q2 . An antenna has a radiation resistance of 80 ohms, effective (ohmic) resistance of 10 ohms, directive gain of 30, and input power of 50 watts. Determine the following: Antenna Efficiency Antenna Power Gain in ratio and in dB Radiated Power in W, dBm and dBW. EIRP in W, dBm and dBW. Power density 3 km away from the antenna in the direction of maximum radiation Antenna Current .
