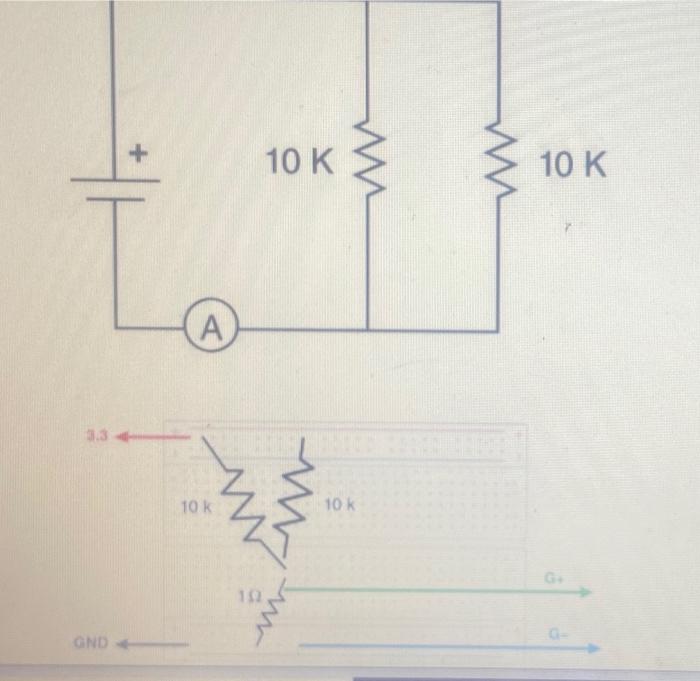

+ 10 K M. 10 K A 3.3 10 K w 10 K 102 GND

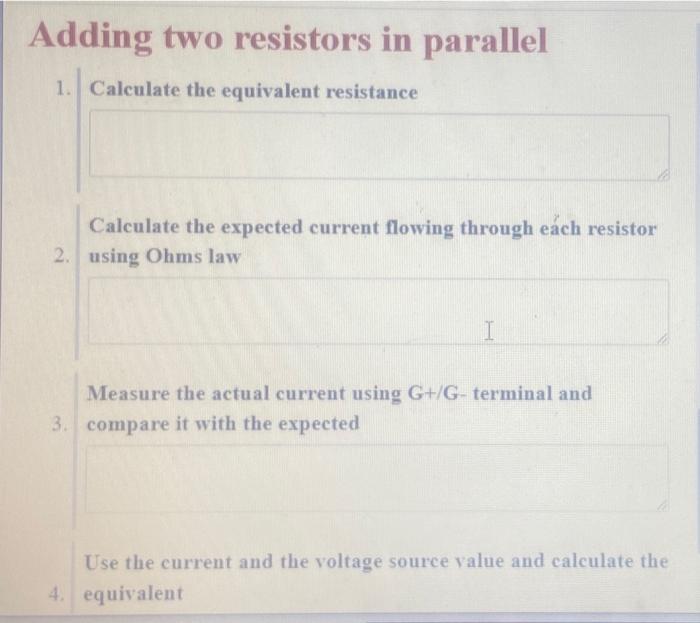

Adding two resistors in parallel 1. Calculate the equivalent resistance Calculate the expected current flowing through each resistor 2. using Ohms law I Measure the actual current using G+/G-terminal and 3. compare it with the expected Use the current and the voltage source value and calculate the 4. equivalent
