4 7 K 4 7 K A 4 7k 4 7 K G 1122 N Gnd Addition Of Two 4 7 K Ohm Resistors In Series 1 Calculate The Equivalent Resist 1 (63.46 KiB) Viewed 70 times
4 7 K 4 7 K A 4 7k 4 7 K G 1122 N Gnd Addition Of Two 4 7 K Ohm Resistors In Series 1 Calculate The Equivalent Resist 2 (37.98 KiB) Viewed 70 times

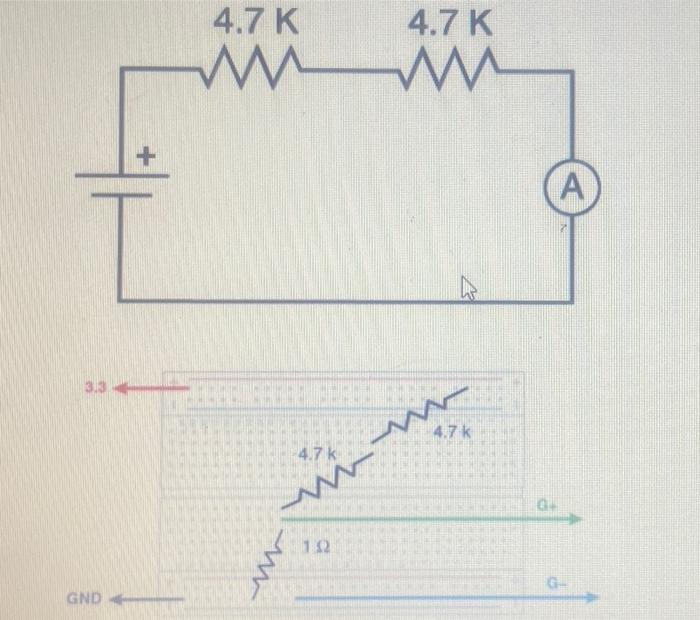

4.7 K 4.7 K A 4.7k 4.7 k G 1122 N GND

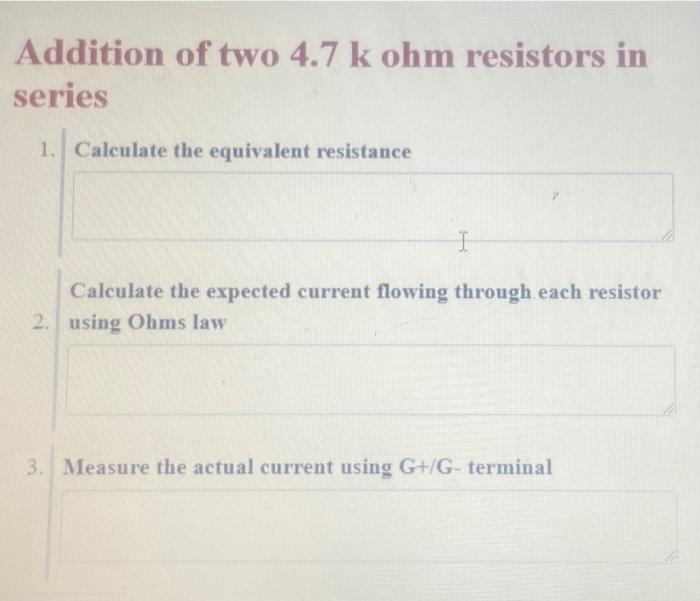

Addition of two 4.7 k ohm resistors in series 1. Calculate the equivalent resistance I Calculate the expected current flowing through each resistor 2. using Ohms law 3. Measure the actual current using G+ G-terminal
