The output voltage of an analog temperature measurement module (Vin) changes with temperature as the graph below. Vin(V)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The output voltage of an analog temperature measurement module (Vin) changes with temperature as the graph below. Vin(V)

Post by answerhappygod »

The Output Voltage Of An Analog Temperature Measurement Module Vin Changes With Temperature As The Graph Below Vin V 1
The Output Voltage Of An Analog Temperature Measurement Module Vin Changes With Temperature As The Graph Below Vin V 1 (66.78 KiB) Viewed 52 times

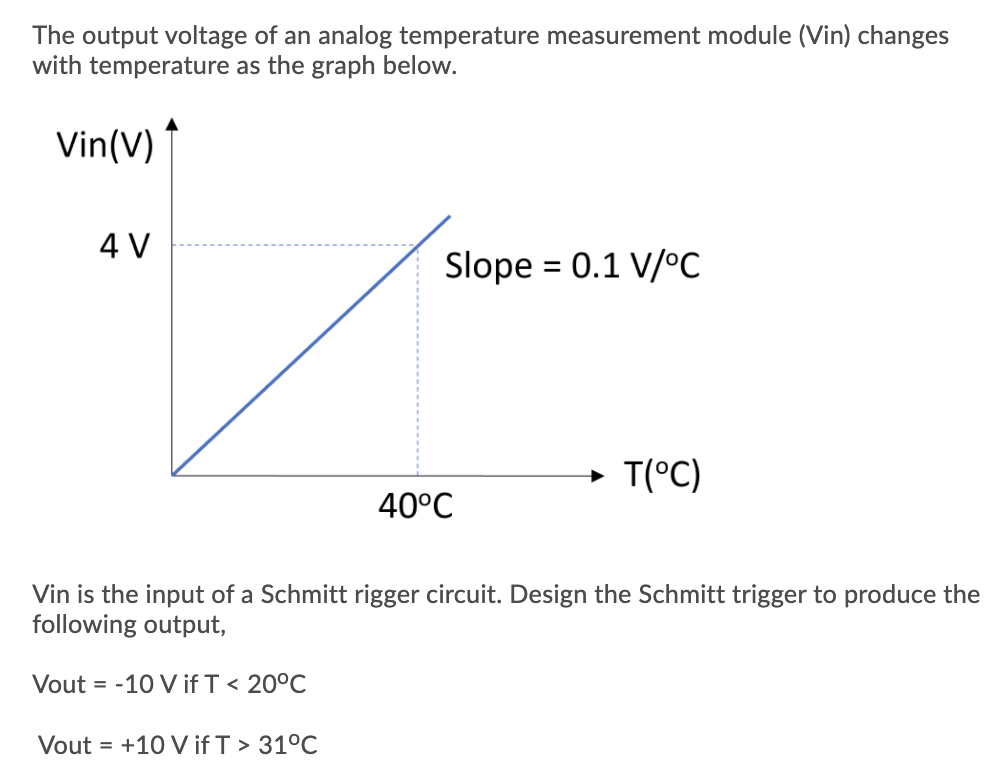

The output voltage of an analog temperature measurement module (Vin) changes with temperature as the graph below. Vin(V) 4 V Slope 0.1 V/°C → T(°C) 40°C Vin is the input of a Schmitt rigger circuit. Design the Schmitt trigger to produce the following output, Vout = -10 Vif T < 20°C Vout = +10 V if T > 31°C
