Knowing that the car is at rest on a track forming an angle of 25 with the vertical, the gross weight of the car and its

Post by answerhappygod »

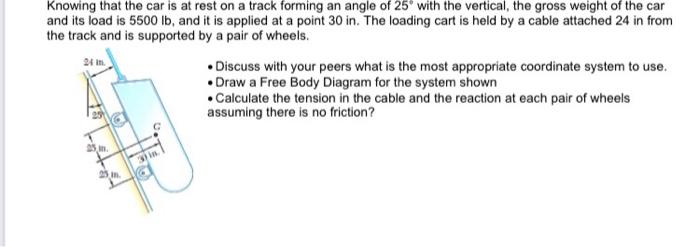

Knowing That The Car Is At Rest On A Track Forming An Angle Of 25 With The Vertical The Gross Weight Of The Car And Its 1
Knowing That The Car Is At Rest On A Track Forming An Angle Of 25 With The Vertical The Gross Weight Of The Car And Its 1 (22.7 KiB) Viewed 57 times
Knowing that the car is at rest on a track forming an angle of 25 with the vertical, the gross weight of the car and its load is 5500 lb, and it is applied at a point 30 in. The loading cart is held by a cable attached 24 in from the track and is supported by a pair of wheels. 24 m. • Discuss with your peers what is the most appropriate coordinate system to use. Draw a Free Body Diagram for the system shown Calculate the tension in the cable and the reaction at each pair of wheels assuming there is no friction? 23. 31 23
