Exercise 1: (5 Marks) From the following figure find in detail and explained step by step: • All normal forces (In all p

Post by answerhappygod »

Exercise 1 5 Marks From The Following Figure Find In Detail And Explained Step By Step All Normal Forces In All P 1
Exercise 1 5 Marks From The Following Figure Find In Detail And Explained Step By Step All Normal Forces In All P 1 (28.22 KiB) Viewed 46 times

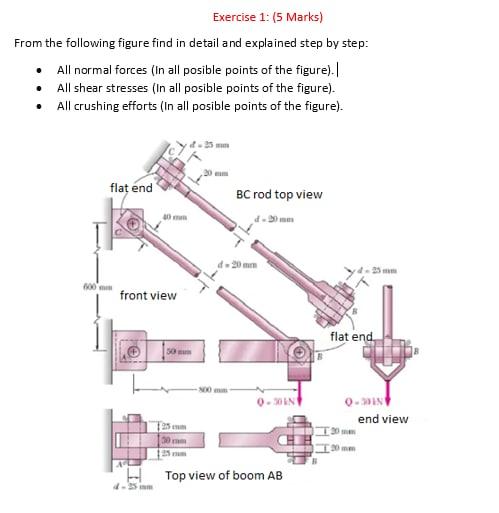

Exercise 1: (5 Marks) From the following figure find in detail and explained step by step: • All normal forces (In all posible points of the figure). • All shear stresses (In all posible points of the figure). • All crushing efforts (In all posible points of the figure). flat end BC rod top view front view flat end SIN 0.33 end view 5 Om I30 Top view of boom AB
