For the rear windshield wiper mechanism shown in Figure P6.25, use the instantaneous center method to analytically deter

Post by answerhappygod »

For The Rear Windshield Wiper Mechanism Shown In Figure P6 25 Use The Instantaneous Center Method To Analytically Deter 1
For The Rear Windshield Wiper Mechanism Shown In Figure P6 25 Use The Instantaneous Center Method To Analytically Deter 1 (29.97 KiB) Viewed 84 times
For The Rear Windshield Wiper Mechanism Shown In Figure P6 25 Use The Instantaneous Center Method To Analytically Deter 2
For The Rear Windshield Wiper Mechanism Shown In Figure P6 25 Use The Instantaneous Center Method To Analytically Deter 2 (49.07 KiB) Viewed 84 times

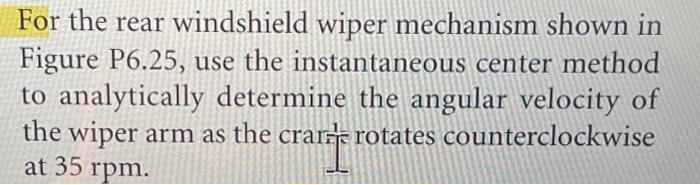

For the rear windshield wiper mechanism shown in Figure P6.25, use the instantaneous center method to analytically determine the angular velocity of the wiper arm as the crante rotates counterclockwise crari at 35 rpm.

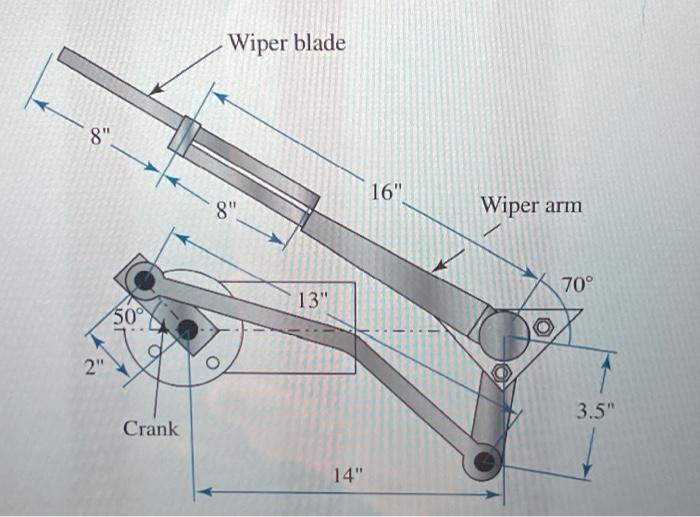

Wiper blade 8" 16" 8" Wiper arm 70° 13" 50° 2" 3.5" Crank 14"
