As shown in Fig. 4, a steel frame with Young's modulus E=203 GPa and Poisson's ratio v=0.3 is subjected to the moment M.

Post by answerhappygod »

As Shown In Fig 4 A Steel Frame With Young S Modulus E 203 Gpa And Poisson S Ratio V 0 3 Is Subjected To The Moment M 1
As Shown In Fig 4 A Steel Frame With Young S Modulus E 203 Gpa And Poisson S Ratio V 0 3 Is Subjected To The Moment M 1 (23.99 KiB) Viewed 51 times

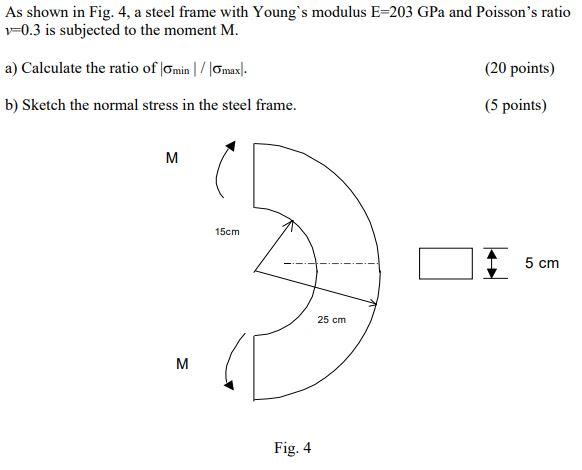

As shown in Fig. 4, a steel frame with Young's modulus E=203 GPa and Poisson's ratio v=0.3 is subjected to the moment M. a) Calculate the ratio of Omin/max/. (20 points) b) Sketch the normal stress in the steel frame. (5 points) M 5cm 5 cm 25 cm M M Fig. 4
