0.375 Shaft 0.2501 Housing Bushing Determine the LIMIT dimensions and fits (clearance (+) or interference (-)) for the f

[answerhappygod]

0 375 Shaft 0 2501 Housing Bushing Determine The Limit Dimensions And Fits Clearance Or Interference For The F 1 (182.4 KiB) Viewed 44 times

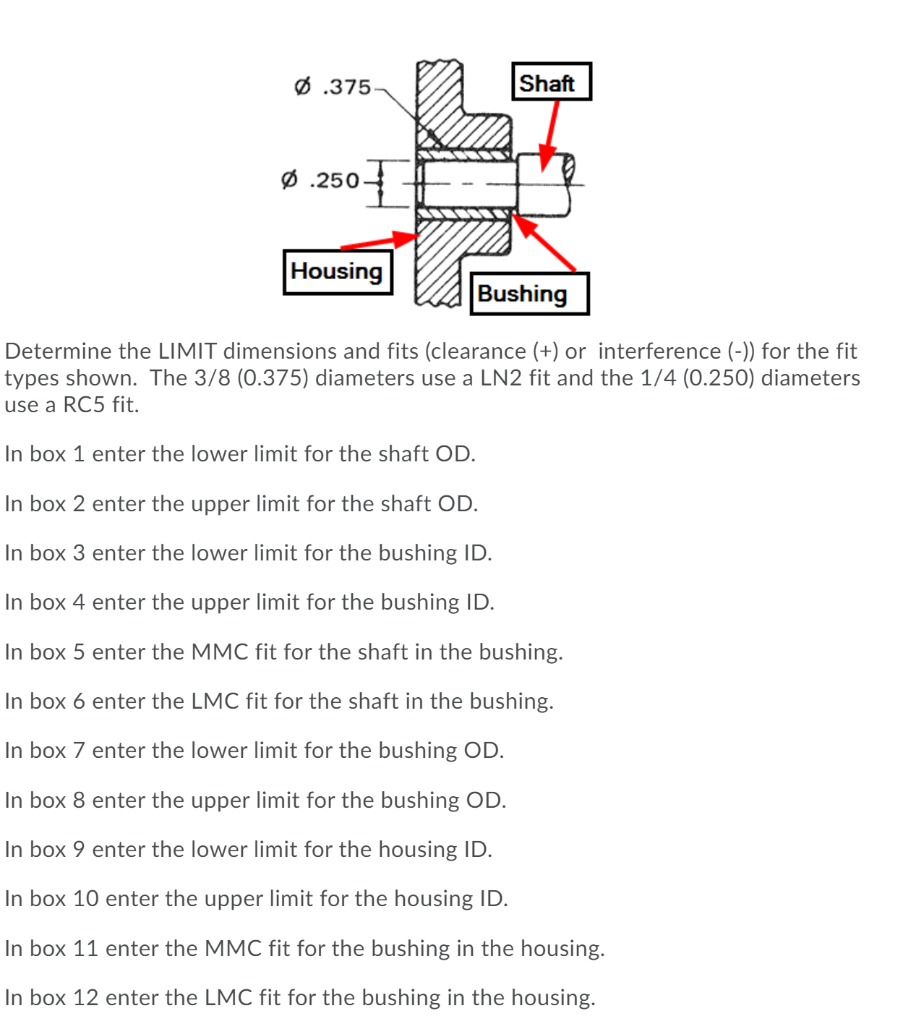

0.375 Shaft 0.2501 Housing Bushing Determine the LIMIT dimensions and fits (clearance (+) or interference (-)) for the fit types shown. The 3/8 (0.375) diameters use a LN2 fit and the 1/4 (0.250) diameters use a RC5 fit. In box 1 enter the lower limit for the shaft OD. In box 2 enter the upper limit for the shaft OD. In box 3 enter the lower limit for the bushing ID. In box 4 enter the upper limit for the bushing ID. In box 5 enter the MMC fit for the shaft in the bushing. In box 6 enter the LMC fit for the shaft in the bushing. In box 7 enter the lower limit for the bushing OD. In box 8 enter the upper limit for the bushing OD. In box 9 enter the lower limit for the housing ID. In box 10 enter the upper limit for the housing ID. In box 11 enter the MMC fit for the bushing in the housing. In box 12 enter the LMC fit for the bushing in the housing.
