Р P 1 cm P 20 cm 8 cm 10 cm TI (a) (b) Fig. 3 1 a) Fig. 3 (a) and (b) show short and long beams subjected to compressive

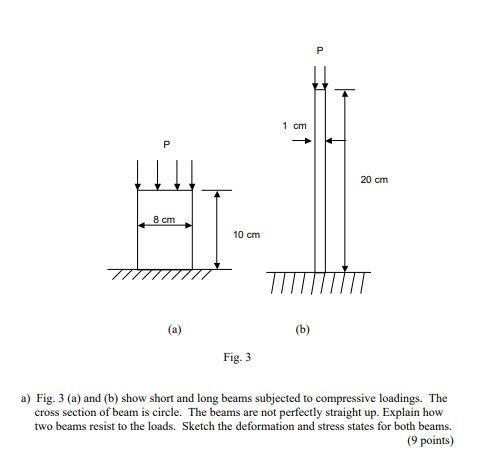

Р P 1 cm P 20 cm 8 cm 10 cm TI (a) (b) Fig. 3 1 a) Fig. 3 (a) and (b) show short and long beams subjected to compressive loadings. The cross section of beam is circle. The beams are not perfectly straight up. Explain how two beams resist to the loads. Sketch the deformation and stress states for both beams. (9 points)
