1. For an industrial application, a lift mechanism powered by a single-square threaded shaft is recommended. The lift sy

[answerhappygod]

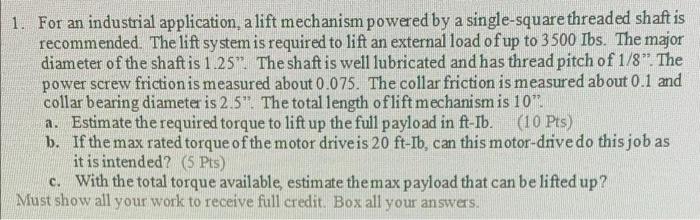

1 For An Industrial Application A Lift Mechanism Powered By A Single Square Threaded Shaft Is Recommended The Lift Sy 1 (42.51 KiB) Viewed 44 times

1. For an industrial application, a lift mechanism powered by a single-square threaded shaft is recommended. The lift system is required to lift an external load of up to 3500 lbs. The major diameter of the shaftis 1.25". The shaft is well lubricated and has thread pitch of 1/8". The power screw friction is measured about 0.075. The collar friction is measured about 0.1 and collar bearing diameter is 2.5". The total length oflift mechanism is 10" a. Estimate the required torque to lift up the full payload in ft-lb. (10 Pts) b. If the max rated torque of the motor driveis 20 ft-lb, can this motor-drive do this job as it is intended? (5 Pts) c. With the total torque available, estimate the max payload that can be lifted up? Must show all your work to receive full credit. Box all your answers.
