3. The Mini Baja Car has a long, slender tube of AISI 1015 Hot Rolled Steel attaching the wheel to the car frame. The tu

[answerhappygod]

3 The Mini Baja Car Has A Long Slender Tube Of Aisi 1015 Hot Rolled Steel Attaching The Wheel To The Car Frame The Tu 1 (35.87 KiB) Viewed 46 times

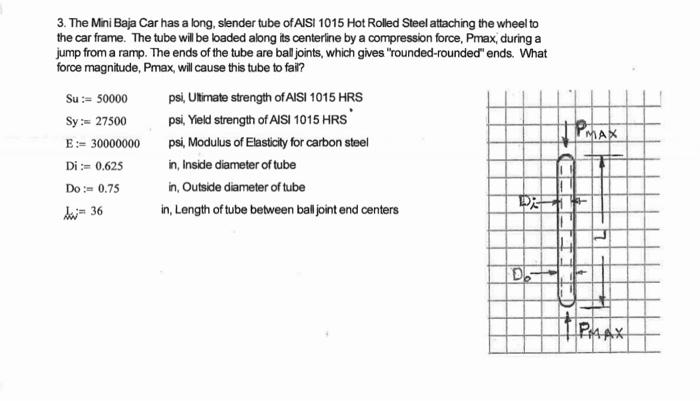

3. The Mini Baja Car has a long, slender tube of AISI 1015 Hot Rolled Steel attaching the wheel to the car frame. The tube will be loaded along its centerline by a compression force, Pmax, during a jump from a ramp. The ends of the tube are bal joints, which gives "rounded-rounded' ends. What force magnitude, Pmax, will cause this tube to fail? Su:= 50000 psi, Ultimate strength of AISI 1015 HRS Sy := 27500 psi, Yield strength of AISI 1015 HRS E:= 30000000 psi, Modulus of Elasticity for carbon steel Di: 0.625 in, Inside diameter of tube Do: 0.75 in, Outside diameter of tube in, Length of tube between bal joint end centers DIF PMAX Ww= 36 L al IPMAX
