1. Graphically position the links for the small aircraft nose wheel actuation mechanism shown in Figure 3.10. Then repos

Post by answerhappygod »

1 Graphically Position The Links For The Small Aircraft Nose Wheel Actuation Mechanism Shown In Figure 3 10 Then Repos 1
1 Graphically Position The Links For The Small Aircraft Nose Wheel Actuation Mechanism Shown In Figure 3 10 Then Repos 1 (41.71 KiB) Viewed 31 times

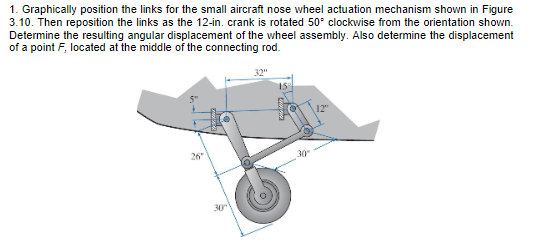

1. Graphically position the links for the small aircraft nose wheel actuation mechanism shown in Figure 3.10. Then reposition the links as the 12-in. crank is rotated 50 clockwise from the orientation shown. Determine the resulting angular displacement of the wheel assembly. Also determine the displacement of a point F, located at the middle of the connecting rod. 26 300
