Q. 3. Determine whether the block shown in figure 3, is in equilibrium, and find the magnitude and direction of the fric

Post by answerhappygod »

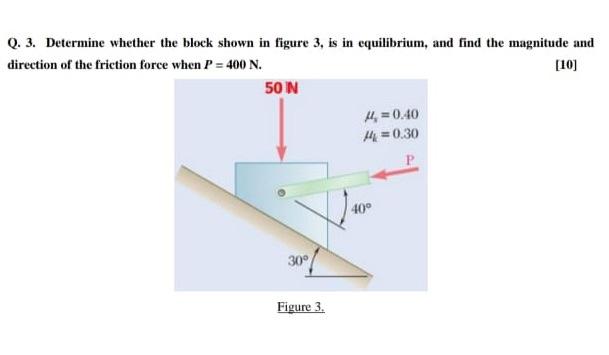

Q 3 Determine Whether The Block Shown In Figure 3 Is In Equilibrium And Find The Magnitude And Direction Of The Fric 1
Q 3 Determine Whether The Block Shown In Figure 3 Is In Equilibrium And Find The Magnitude And Direction Of The Fric 1 (13.98 KiB) Viewed 55 times
Q. 3. Determine whether the block shown in figure 3, is in equilibrium, and find the magnitude and direction of the friction force when P = 400 N. [10] 50 N 4. =0.40 42=0.30 Р 40° 30° Figure 3.
