Calculate the shear force in kips at distance "X". given x =9.00 ft, y = 12.00 ft, w = 2.25 k/ft 6% Note: You need to ca

[answerhappygod]

Calculate The Shear Force In Kips At Distance X Given X 9 00 Ft Y 12 00 Ft W 2 25 K Ft 6 Note You Need To Ca 1 (42.31 KiB) Viewed 46 times

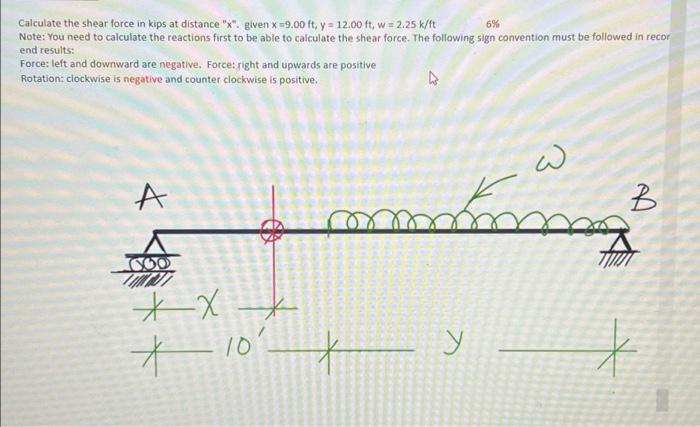

Calculate the shear force in kips at distance "X". given x =9.00 ft, y = 12.00 ft, w = 2.25 k/ft 6% Note: You need to calculate the reactions first to be able to calculate the shear force. The following sign convention must be followed in recor end results: Force: left and downward are negative. Forces right and upwards are positive Rotation: clockwise is negative and counter clockwise is positive. w А B L TOUT XX X X X X 10 t у f
