Question 1 Given the four bank linkage shown in Figure 1. The length of the links CD, AB and BC are 1.0 m, 0.8 mand 5 m

[answerhappygod]

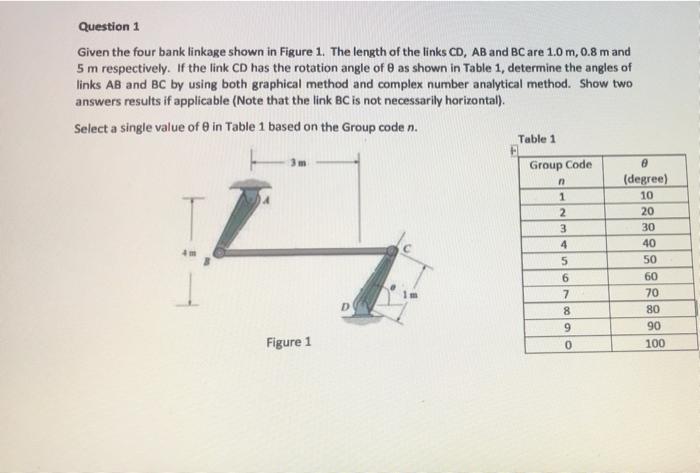

Question 1 Given The Four Bank Linkage Shown In Figure 1 The Length Of The Links Cd Ab And Bc Are 1 0 M 0 8 Mand 5 M 1 (33.67 KiB) Viewed 41 times

Question 1 Given the four bank linkage shown in Figure 1. The length of the links CD, AB and BC are 1.0 m, 0.8 mand 5 m respectively. If the link CD has the rotation angle of as shown in Table 1, determine the angles of links AB and BC by using both graphical method and complex number analytical method. Show two answers results if applicable (Note that the link BC is not necessarily horizontal). Select a single value of in Table 1 based on the Group coden. Table 1 Group Code n 1 2 3 4 5 6 7 8 9 0 (degree) 10 20 30 40 50 60 70 80 90 100 Figure 1
