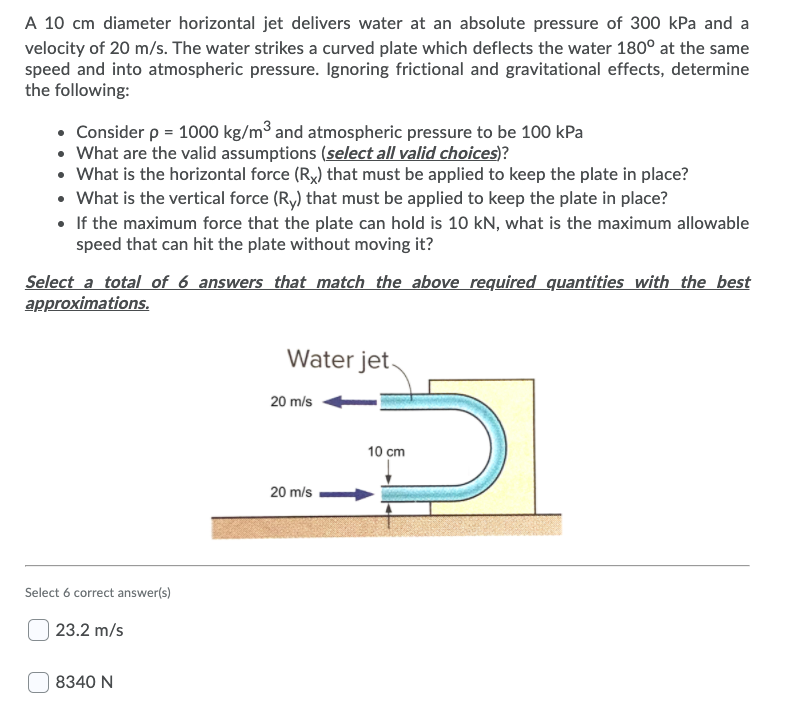

A 10 cm diameter horizontal jet delivers water at an absolute pressure of 300 kPa and a velocity of 20 m/s. The water strikes a curved plate which deflects the water 180° at the same speed and into atmospheric pressure. Ignoring frictional and gravitational effects, determine the following: • Consider p = 1000 kg/m3 and atmospheric pressure to be 100 kPa • What are the valid assumptions (select all valid choices)? • What is the horizontal force (Ry) that must be applied to keep the plate in place? • What is the vertical force (Ry) that must be applied to keep the plate in place? • If the maximum force that the plate can hold is 10 kN, what is the maximum allowable speed that can hit the plate without moving it? Select a total of 6 answers that match the above required quantities with the best approximations. Water jet 20 m/s 10 cm 20 m/s Select 6 correct answer(s) 23.2 m/s 8340 N
U8340 N Steady Flow Non-uniform Velocity Profile across Control Surfaces 10 N Compressible Flow 5812 N 5.71 m/s Unsteady Flow Uniform Velocity Profile across Control Surfaces 45 N ON 58.1 m/s 7850 N Incompressible Flow
