Question 5 The state of plane stress shown in Figure Q5 occurs in a machine component made of a steel with , - 210 Mpa.

[answerhappygod]

Question 5 The State Of Plane Stress Shown In Figure Q5 Occurs In A Machine Component Made Of A Steel With 210 Mpa 1 (28.87 KiB) Viewed 35 times

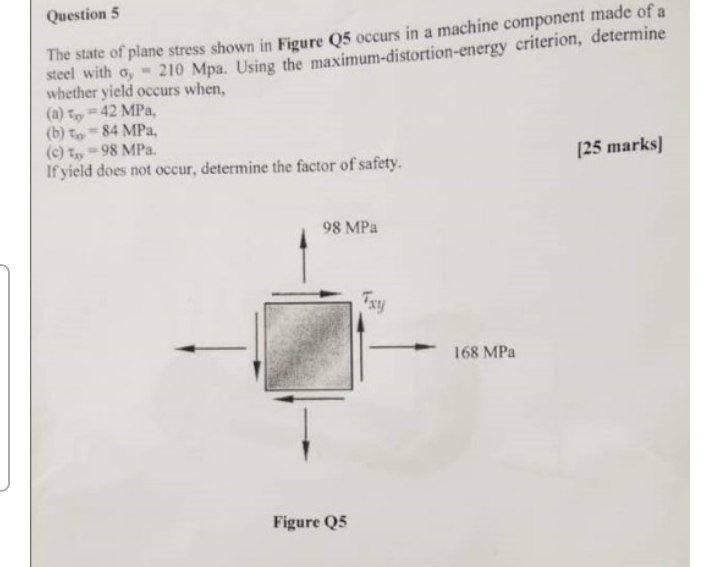

Question 5 The state of plane stress shown in Figure Q5 occurs in a machine component made of a steel with , - 210 Mpa. Using the maximum-distortion-energy criterion, determine whether yield occurs when, (a) = 42 MPa. (b) 1,84 MPa. (c) ty98 MPa. If yield does not occur, determine the factor of safety. [25 marks) 98 MPa *xy 168 MPa Figure Q5
