2- The two-span bridge is subject to the seismic lateral shown. Three square columns are made of reinforced concrete wit

Post by answerhappygod »

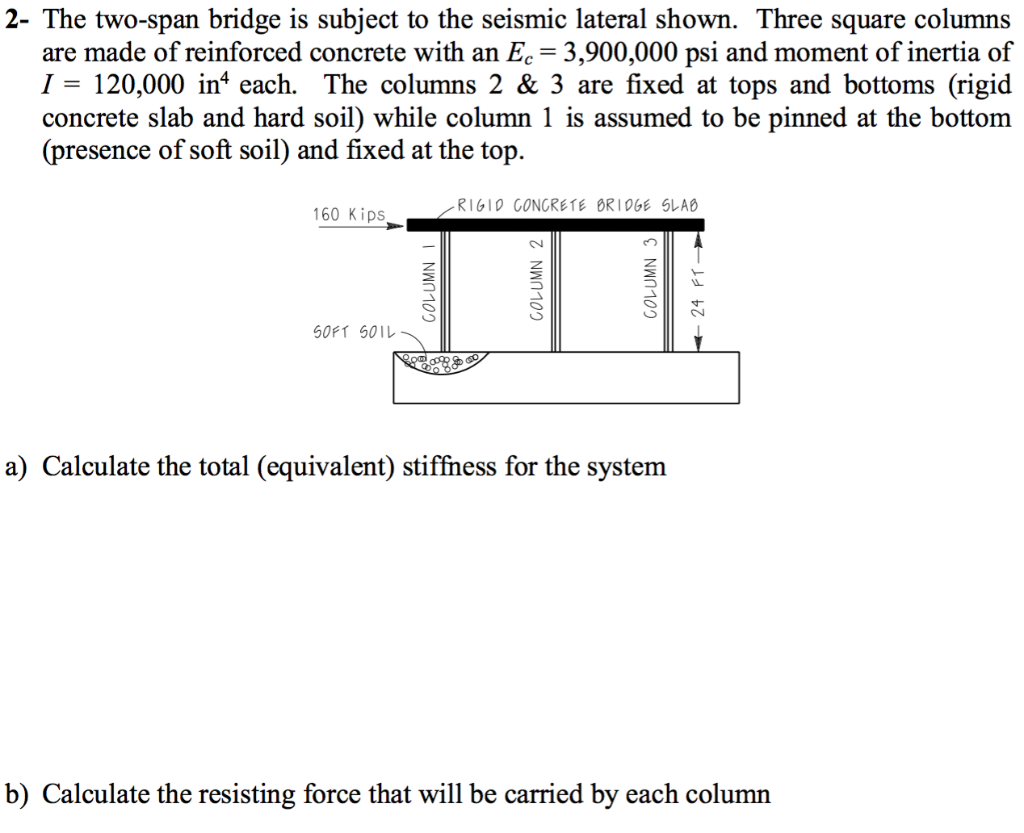

2 The Two Span Bridge Is Subject To The Seismic Lateral Shown Three Square Columns Are Made Of Reinforced Concrete Wit 1
2 The Two Span Bridge Is Subject To The Seismic Lateral Shown Three Square Columns Are Made Of Reinforced Concrete Wit 1 (223.84 KiB) Viewed 14 times
2- The two-span bridge is subject to the seismic lateral shown. Three square columns are made of reinforced concrete with an Ec = 3,900,000 psi and moment of inertia of 1 120,000 in* each. The columns 2 & 3 are fixed at tops and bottoms (rigid concrete slab and hard soil) while column 1 is assumed to be pinned at the bottom (presence of soft soil) and fixed at the top. = 160 Kips RIGID CONCRETE BRIDGE SLAB NW0109 COLUMN 2 COLUMN 24 F1 SOFT SOIL a) Calculate the total (equivalent) stiffness for the system b) Calculate the resisting force that will be carried by each column
