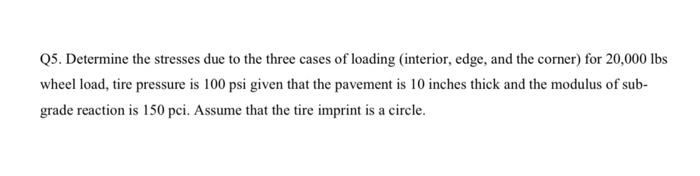

Q5. Determine the stresses due to the three cases of loading (interior, edge, and the corner) for 20,000 lbs wheel load, tire pressure is 100 psi given that the pavement is 10 inches thick and the modulus of sub- grade reaction is 150 pci. Assume that the tire imprint is a circle.
