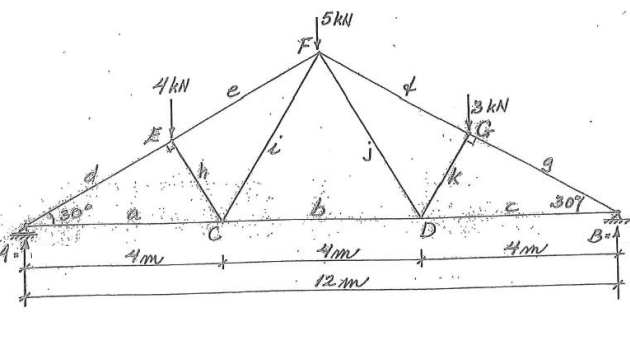

The figure below shows a truss in steel. The truss consists of
beam elements with a
rectangular cross section with height 5 cm and width 3 cm. The
beams are welded together in all
points A-G. The trusses are stored in points A and B. The steel's
yield strength is stated as
250 N / mm2
. Make other necessary prerequisites yourself.
1- write a report
2- Make a model of the truss in Solidworks and calculate the
largest displacement.
3- Comment on the results both in relation to material selection
and solution method.
