Question 5 10 Points The deflection angles from PC to two intermediate points A and B on a simple curve are 4.3 and 6.4"

[answerhappygod]

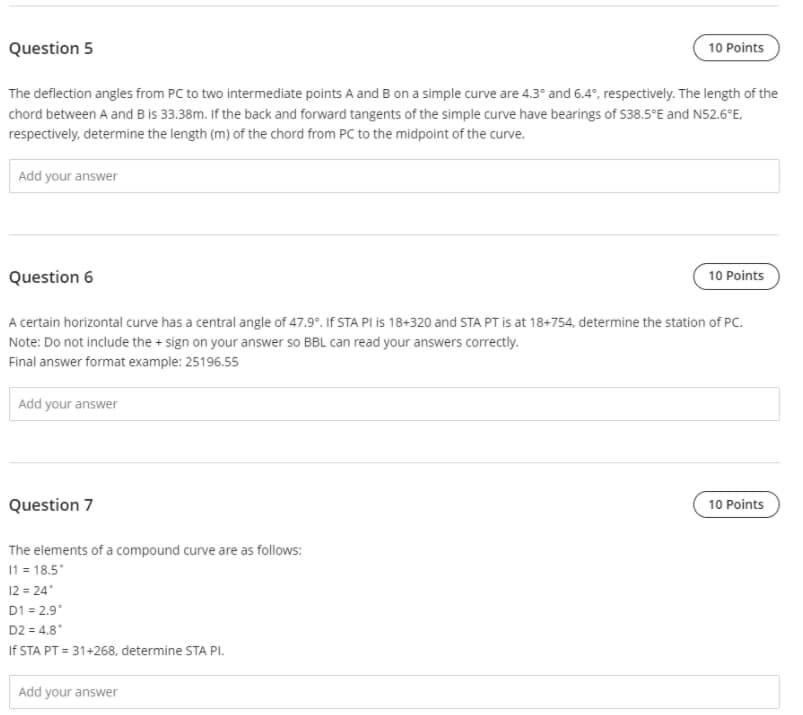

Question 5 10 Points The Deflection Angles From Pc To Two Intermediate Points A And B On A Simple Curve Are 4 3 And 6 4 1 (42.52 KiB) Viewed 41 times

Question 5 10 Points The deflection angles from PC to two intermediate points A and B on a simple curve are 4.3 and 6.4", respectively. The length of the chord between A and Bis 33.38m. If the back and forward tangents of the simple curve have bearings of $38.5°E and N52.6°E. respectively, determine the length (m) of the chord from PC to the midpoint of the curve. Add your answer Question 6 10 Points A certain horizontal curve has a central angle of 47.99. IF STA PIIS 18+320 and STA PT is at 18+754 determine the station of PC. Note: Do not include the + sign on your answer so BBL can read your answers correctly. Final answer format example: 25196.55 Add your answer Question 7 10 Points The elements of a compound curve are as follows: 11 = 18.5 12 = 24 D1 = 2.9 D2 = 4.8 If STA PT = 31 +268, determine STA PI. Add your answer
