A 6 mx 2 m rectangular combined footing placed at 3 m below ground level carries the loads as shown in figure 02. The lo

[answerhappygod]

A 6 Mx 2 M Rectangular Combined Footing Placed At 3 M Below Ground Level Carries The Loads As Shown In Figure 02 The Lo 1 (68.07 KiB) Viewed 34 times

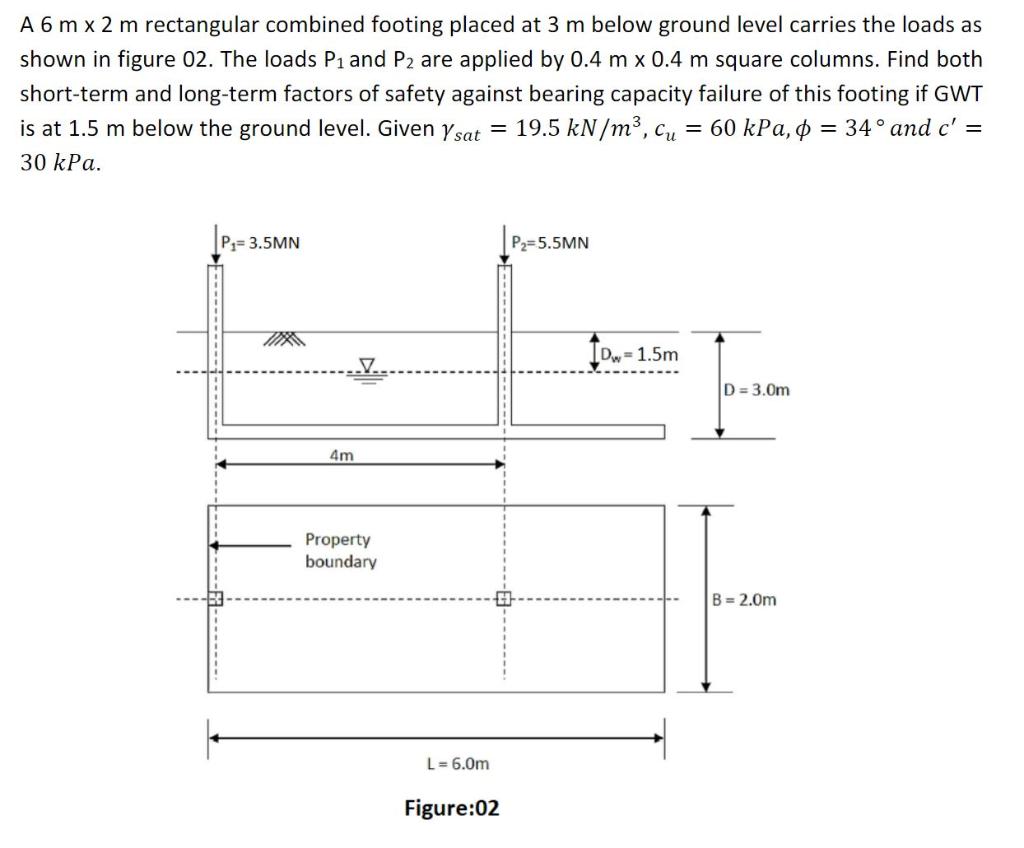

A 6 mx 2 m rectangular combined footing placed at 3 m below ground level carries the loads as shown in figure 02. The loads Pa and P2 are applied by 0.4 m x 0.4 m square columns. Find both short-term and long-term factors of safety against bearing capacity failure of this footing if GWT is at 1.5 m below the ground level. Given Ysat = 19.5 kN/mº, cu = 60 kPa, d = 34° and c' = 30 kPa. P = 3.5MN P2=5.5MN Dw=1.5m y.. D = 3.0m 4m Property boundary B = 2.0m L = 6.0m Figure:02
