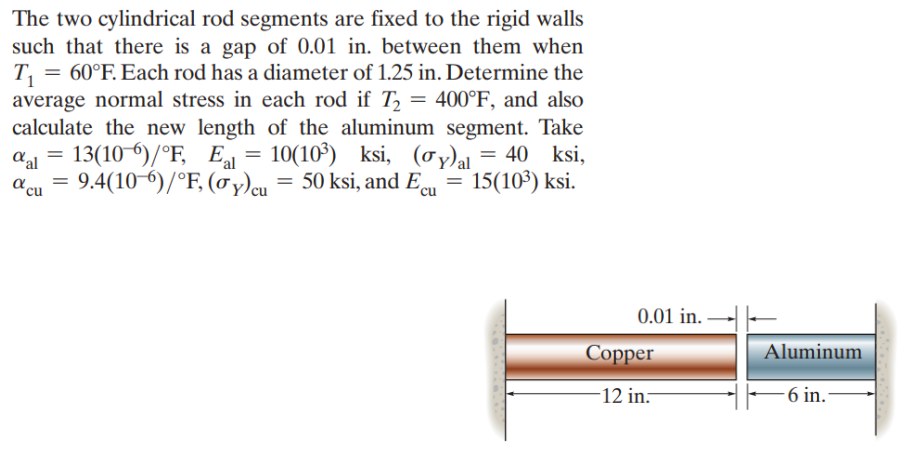

- The Two Cylindrical Rod Segments Are Fixed To The Rigid Walls Such That There Is A Gap Of 0 01 In Between Them When T 1 (138.23 KiB) Viewed 30 times
The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.01 in. between them when T =
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.01 in. between them when T =
The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.01 in. between them when T = 60°F. Each rod has a diameter of 1.25 in. Determine the average normal stress in each rod if T= 400°F, and also calculate the new length of the aluminum segment. Take Qal 13(10+/F, Eal = 10(103) ksi, (OY)al = 40 ksi, + 9.4(10)/°F, (©)cu = 50 ksi, and Ecu = 15(103) ksi. = لان 0 = 0.01 in. Copper Aluminum 12 in. 6 in.
