м MQI NO --X 2 m 2 m 10 kN/m B в. 7 KN 2 m α a D 1 q 3 m S F G --- 5 m 6 m

Post by answerhappygod »

1
1 (35.42 KiB) Viewed 24 times

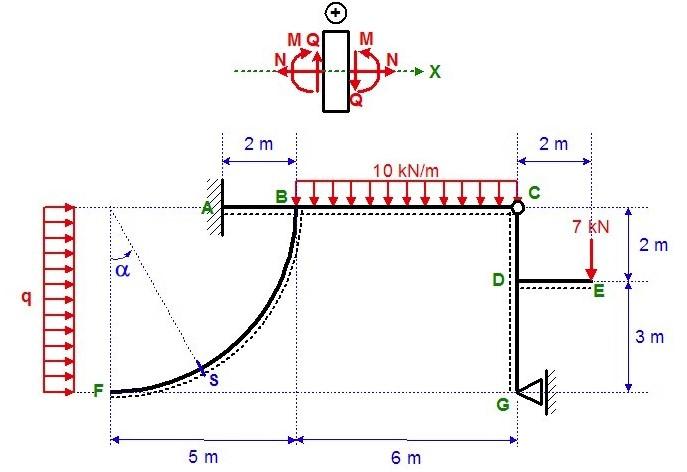

A) Provide below the calculated value for the normal force
N on the arc:
B) Provide below the calculated value for the shear force Q
on the arc:
C) Provide below the calculated value for the bending
moment M in the arc:
D) Provide below the calculated value for the bending
moment M in the bar:
м MQI NO --X 2 m 2 m 10 kN/m B в. 7 KN 2 m α a D 1 q 3 m S F G --- 5 m 6 m
