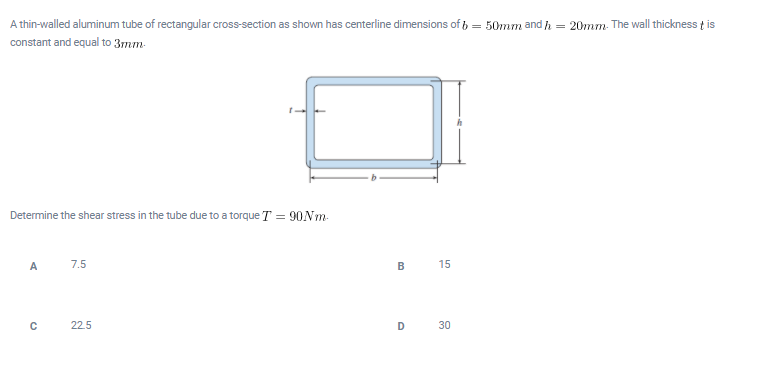

20mm. The wall thickness t is A thin-walled aluminum tube of rectangular cross-section as shown has centerline dimensions of b = 50mm and h constant and equal to 3mm. Determine the shear stress in the tube due to a torque T = 90Nm. А 7.5 B 15 С 22.5 D 30

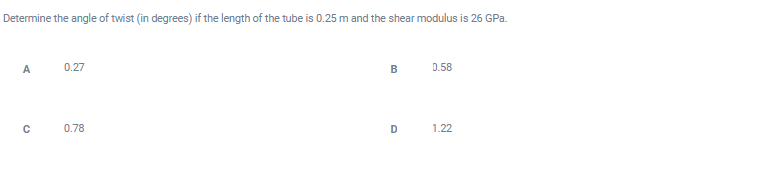

Determine the angle of twist (in degrees) if the length of the tube is 0.25 m and the shear modulus is 26 GPa. A A 0.27 B 0.58 с 0.78 D 1.22
