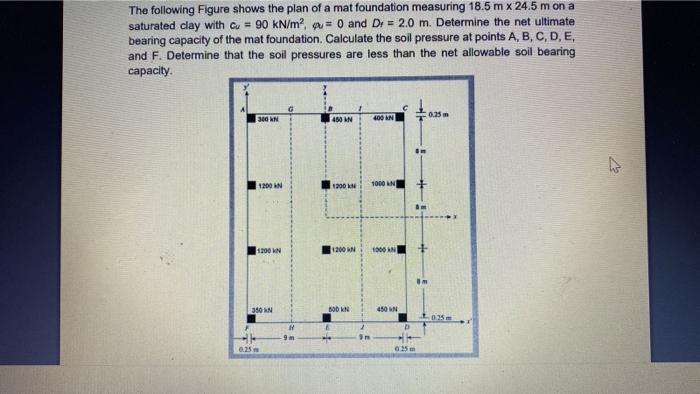

The following Figure shows the plan of a mat foundation measuring 18.5 mx 24.5 m on a saturated clay with cu = 90 kN/m2

[answerhappygod]

The Following Figure Shows The Plan Of A Mat Foundation Measuring 18 5 Mx 24 5 M On A Saturated Clay With Cu 90 Kn M2 1 (39.14 KiB) Viewed 41 times

The following Figure shows the plan of a mat foundation measuring 18.5 mx 24.5 m on a saturated clay with cu = 90 kN/m2 w = 0 and Di = 2.0 m. Determine the net ultimate bearing capacity of the mat foundation Calculate the soil pressure at points A, B, C, D, E, and F. Determine that the soil pressures are less than the net allowable soil bearing capacity 300KN 450 N 400 N T 0.33 in G7 1200 N 2004 1000 UN 1200 IN 1200 N 1000 N + IM 380N BODEN 450 N LOS R 9. 25 m
