2. Analyze the frame shown in Figure 2 by Moment distribution method. Draw the shear force and bending moment diagram. 3

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

2. Analyze the frame shown in Figure 2 by Moment distribution method. Draw the shear force and bending moment diagram. 3

Post by answerhappygod »

2 Analyze The Frame Shown In Figure 2 By Moment Distribution Method Draw The Shear Force And Bending Moment Diagram 3 1
2 Analyze The Frame Shown In Figure 2 By Moment Distribution Method Draw The Shear Force And Bending Moment Diagram 3 1 (28.82 KiB) Viewed 43 times

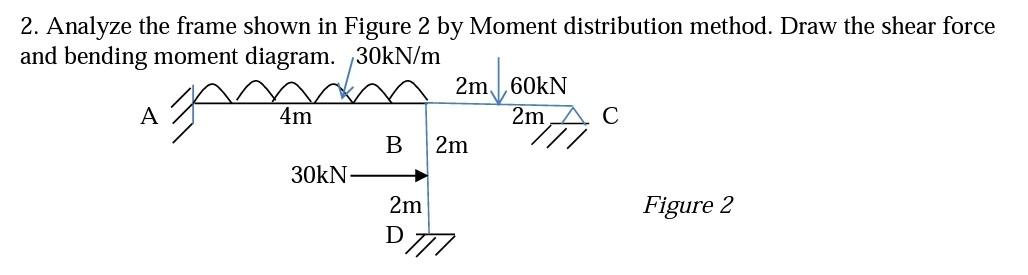

2. Analyze the frame shown in Figure 2 by Moment distribution method. Draw the shear force and bending moment diagram. 30kN/m 2m. 60KN A 4m 2mA с B 2m 30kN 2m Figure 2 D ܫܫ DT
