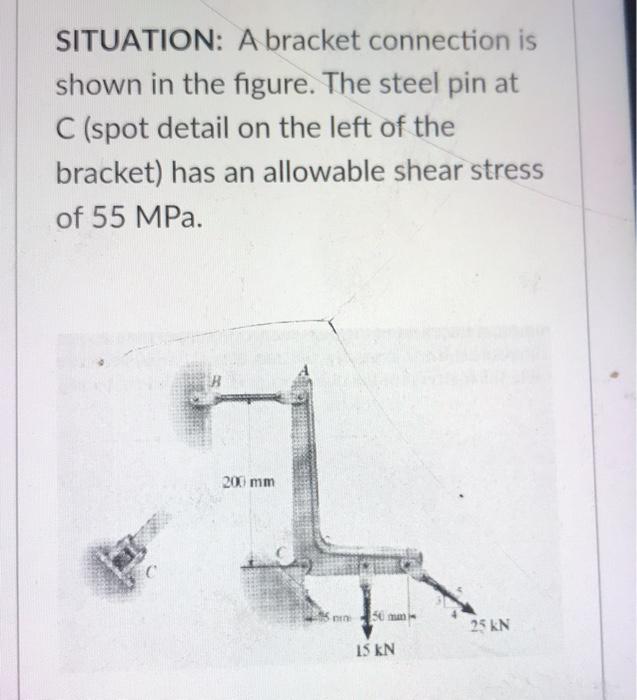

SITUATION: A bracket connection is shown in the figure. The steel pin at C (spot detail on the left of the bracket) has an allowable shear stress of 55 MPa. 200 mm 50 mm 25 KN IS KN

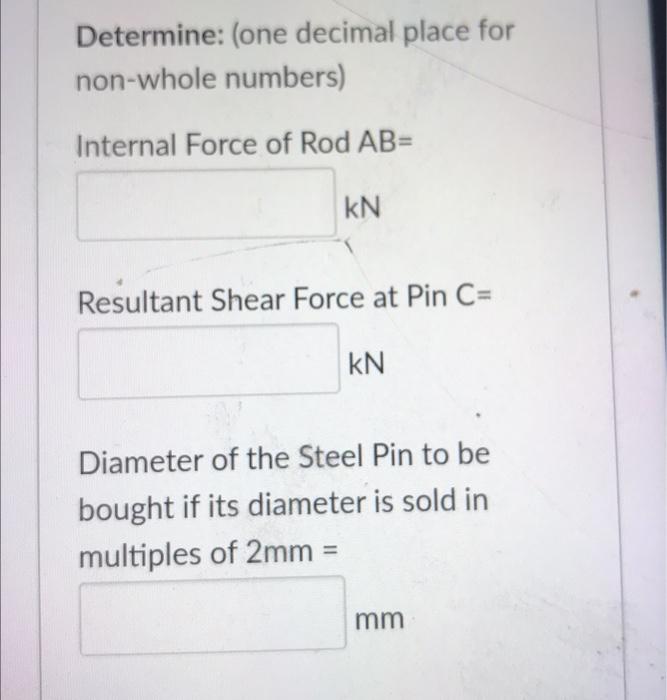

Determine: (one decimal place for non-whole numbers) Internal Force of Rod AB= KN Resultant Shear Force at Pin C= KN Diameter of the Steel Pin to be bought if its diameter is sold in multiples of 2mm = mm
