A rectangular beam 250 mm wide, 500 mm deep is reinforced at the bottom with 4-20-mm- diameter bars and at the top with

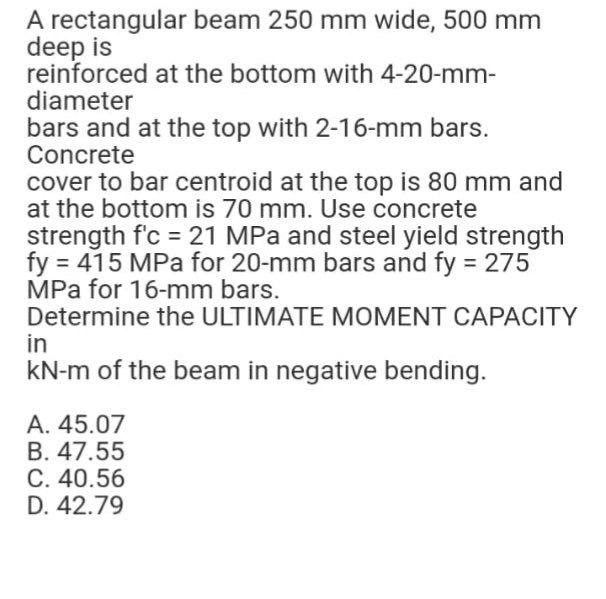

A rectangular beam 250 mm wide, 500 mm deep is reinforced at the bottom with 4-20-mm- diameter bars and at the top with 2-16-mm bars. Concrete cover to bar centroid at the top is 80 mm and at the bottom is 70 mm. Use concrete strength f'c = 21 MPa and steel yield strength fy = 415 MPa for 20-mm bars and fy = 275 MPa for 16-mm bars. Determine the ULTIMATE MOMENT CAPACITY in KN-m of the beam in negative bending. A. 45.07 B. 47.55 C. 40.56 D. 42.79
