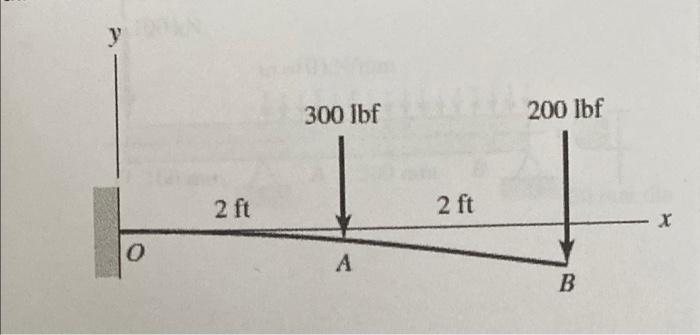

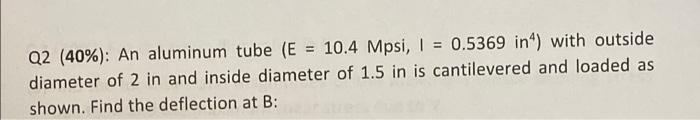

Q2 (40%): An aluminum tube (E = 10.4 Mpsi, I = 0.5369 in) with outside diameter of 2 in and inside diameter of 1.5 in is cantilevered and loaded as shown. Find the deflection at B:

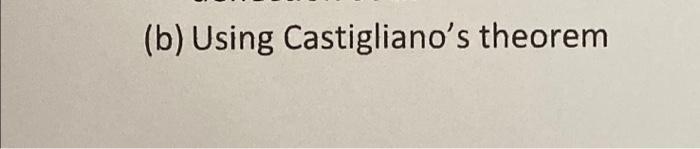

(b) Using Castigliano's theorem
y 300 lbf 200 lbf 2 ft 2 ft 0 А B
