A round long bar in the landing gear mechanism has a diameter d=0.02 m is subjected to a pure torsional torque T = 46.2

Post by answerhappygod »

A Round Long Bar In The Landing Gear Mechanism Has A Diameter D 0 02 M Is Subjected To A Pure Torsional Torque T 46 2 1
A Round Long Bar In The Landing Gear Mechanism Has A Diameter D 0 02 M Is Subjected To A Pure Torsional Torque T 46 2 1 (18.46 KiB) Viewed 43 times

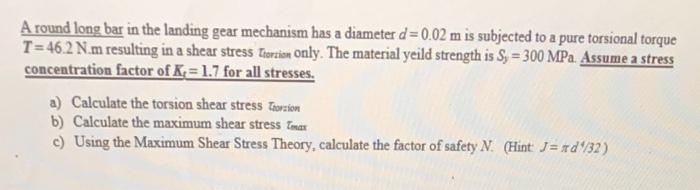

A round long bar in the landing gear mechanism has a diameter d=0.02 m is subjected to a pure torsional torque T = 46.2 N.m resulting in a shear stress Tortion only. The material yeild strength is Sy = 300 MPa. Assume a stress concentration factor of K = 1.7 for all stresses. a) Calculate the torsion shear stress Toorzion b) Calculate the maximum shear stress Tax c) Using the Maximum Shear Stress Theory, calculate the factor of safety N. (Hint: J=d132)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
