21 Example 34.50. An 8-pole, 37.3-KW, 3-phase induction motor has both stator and rotor windings wecled in star. The sup

Post by answerhappygod »

21 Example 34 50 An 8 Pole 37 3 Kw 3 Phase Induction Motor Has Both Stator And Rotor Windings Wecled In Star The Sup 1
21 Example 34 50 An 8 Pole 37 3 Kw 3 Phase Induction Motor Has Both Stator And Rotor Windings Wecled In Star The Sup 1 (41.85 KiB) Viewed 36 times

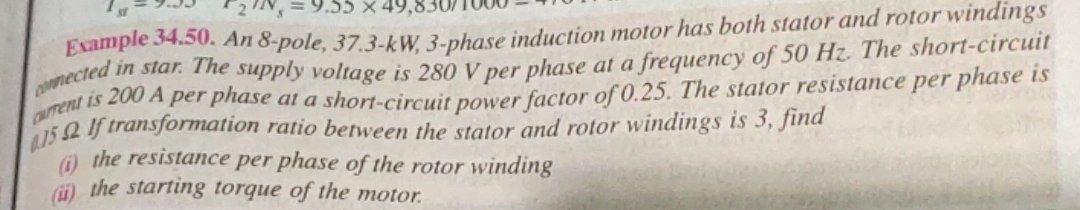

21 Example 34.50. An 8-pole, 37.3-KW, 3-phase induction motor has both stator and rotor windings wecled in star. The supply voltage is 280 V per phase at a frequency of 50 Hz. The short-circuit urrent is 200 A per phase at a short-circuit power factor of 0.25. The stator resistance per phase is 11512 transformation ratio between the stator and rotor windings is 3, find () the resistance per phase of the rotor winding (i) the starting torque of the motor.
