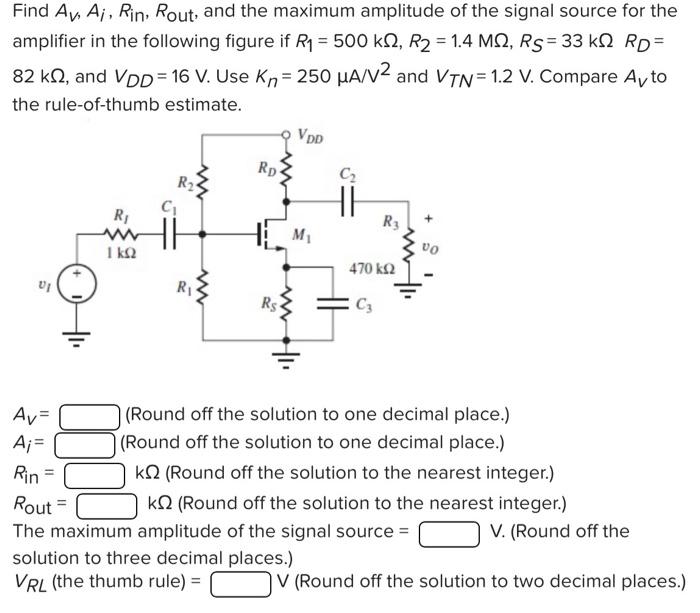

Find Av. Ai, Rin, Rout, and the maximum amplitude of the signal source for the amplifier in the following figure if R1 = 500 k12, R2 = 1.4 M2, Rs=33 k2 RD= 82 k12, and VDD = 16 V. Use Kn= 250 JA/V2 and VTN= 1.2 V. Compare Avto the rule-of-thumb estimate. VpD Rp R2 C2 C HH R; R3 + M I k2 VO 470 ΚΩ w 0 RI C3 Av= (Round off the solution to one decimal place.) A;= (Round off the solution to one decimal place.) Rin= k12 (Round off the solution to the nearest integer.) Rout= k12 (Round off the solution to the nearest integer.) The maximum amplitude of the signal source = V. (Round off the solution to three decimal places.) VRL (the thumb rule) = V (Round off the solution to two decimal places.)
