Problem 1 For the circuit shown below: (a) Sketch and dimension v(z,t) at t = 2 nsec. ܕ (b) Sketch and dimension i(z, t)

Post by answerhappygod »

1
1 (69.79 KiB) Viewed 60 times

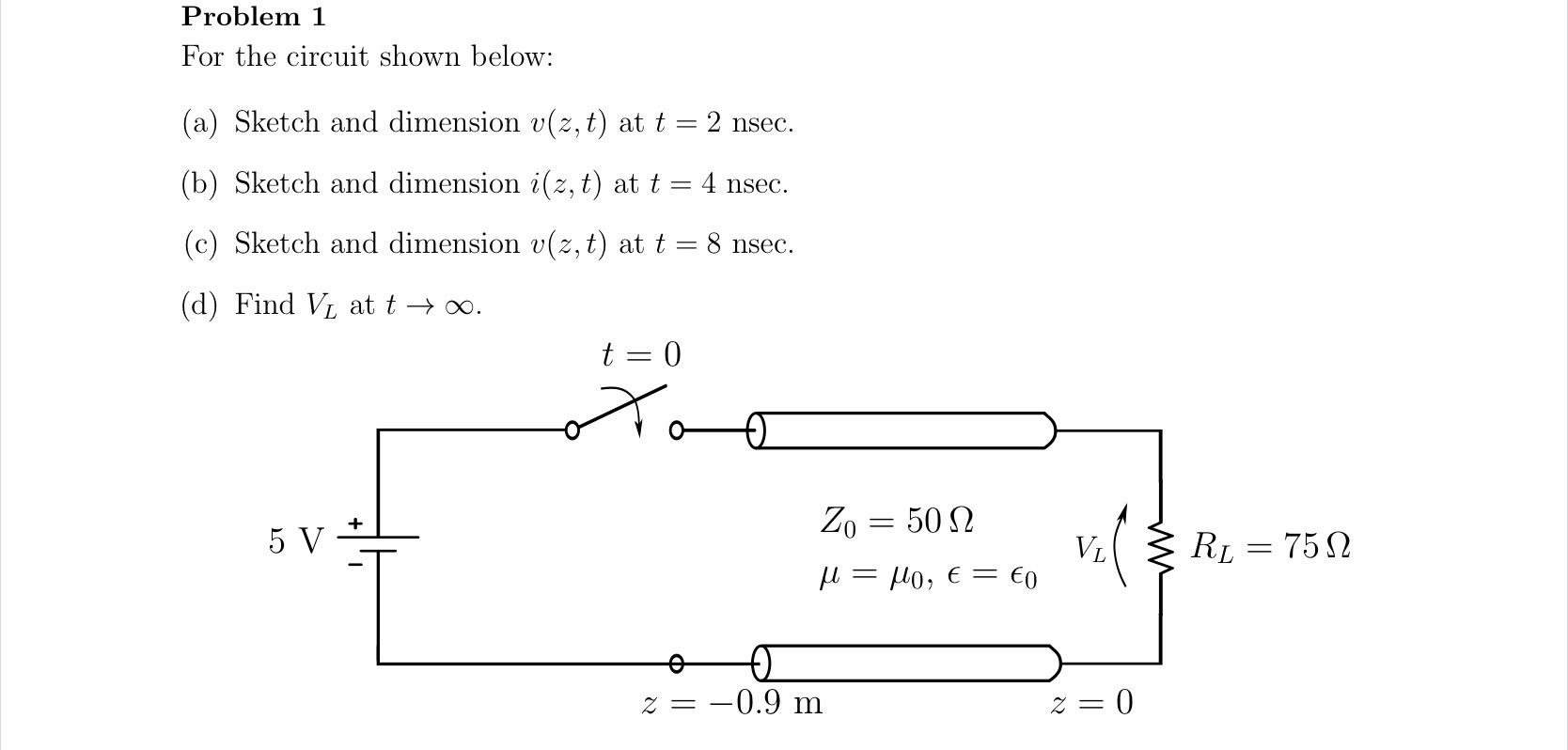

Problem 1 For the circuit shown below: (a) Sketch and dimension v(z,t) at t = 2 nsec. ܕ (b) Sketch and dimension i(z, t) at t 4 nsec. (c) Sketch and dimension v(z,t) at t = 8 nsec. (d) Find Vi at t + . t=0 0 Zo = 5032 5 V VL RL = 7512 - U = UO, E = 60 o z = -0.9 m z = 0
