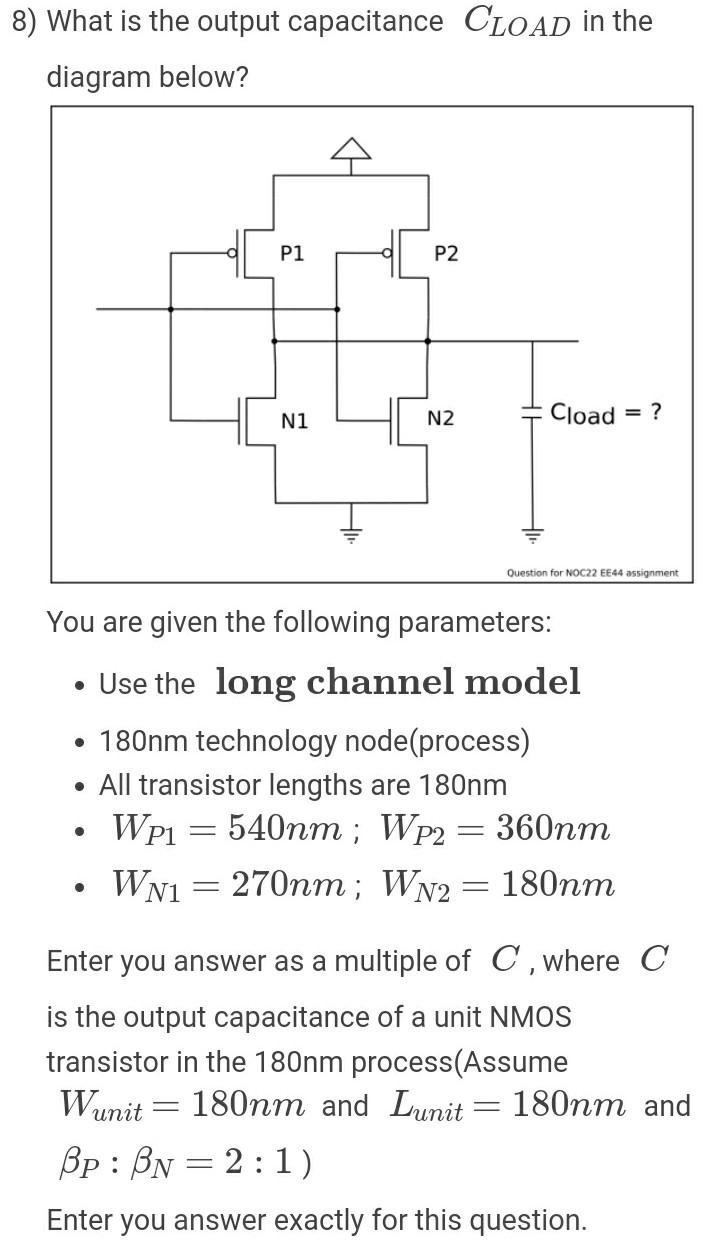

8) What is the output capacitance CLOAD in the diagram below? P1 P2 N1 N2 Cload = ? Question for NOC22 EE44 assignment Y

[answerhappygod]

8 What Is The Output Capacitance Cload In The Diagram Below P1 P2 N1 N2 Cload Question For Noc22 Ee44 Assignment Y 1 (86.07 KiB) Viewed 74 times

8) What is the output capacitance CLOAD in the diagram below? P1 P2 N1 N2 Cload = ? Question for NOC22 EE44 assignment You are given the following parameters: • Use the long channel model • 180nm technology node(process) • All transistor lengths are 180nm Wp1 540nm ; WP2 = 360nm - 270nm ; WN2 = 180nm . - WN1 . - Enter you answer as a multiple of C, where C is the output capacitance of a unit NMOS transistor in the 180nm process(Assume - 180nm and Lunit = 180nm and Bp: BN = 2:1) Enter you answer exactly for this question. Wunit
