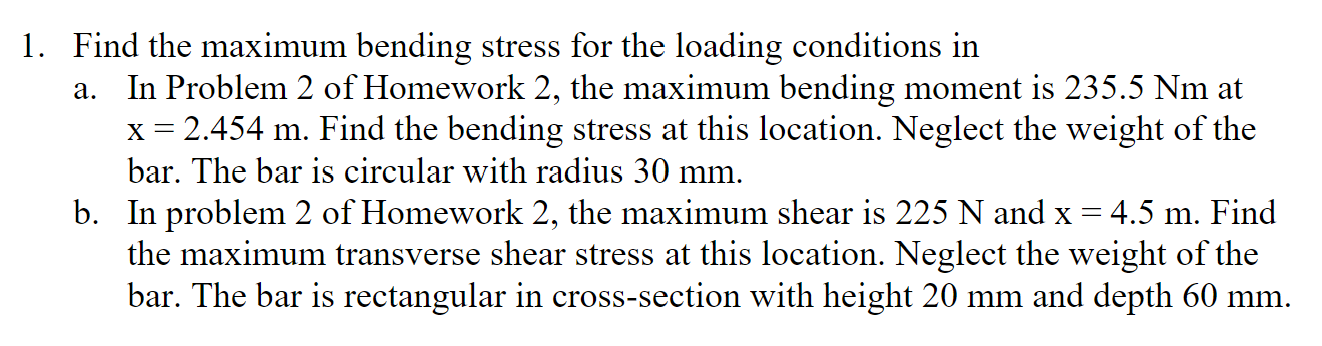

- 1. Find the maximum bending stress for the loading conditions in a. In Problem 2 of Homework 2, the maximum bending moment is 235.5 Nm at x = 2.454 m. Find the bending stress at this location. Neglect the weight of the bar. The bar is circular with radius 30 mm. b. In problem 2 of Homework 2, the maximum shear 225 N and x = 4.5 m. Find the maximum transverse shear stress at this location. Neglect the weight of the bar. The bar is rectangular in cross-section with height 20 mm and depth 60 mm. =
For the beam shown, all dimensions are in m. Let wo = 90 N/m and wi = 150 N/m. W1 Wo AL B m 1 m*1.5 m -1 m m -0.5 m Figure 1 Loaded Cantilever Beam
