4 A An Engine Shaft Running At 120 R P M Is Required To Drive A Machine Shaft By Means Of A Belt The Pulley On The E 1 (28.16 KiB) Viewed 123 times
urgently needed

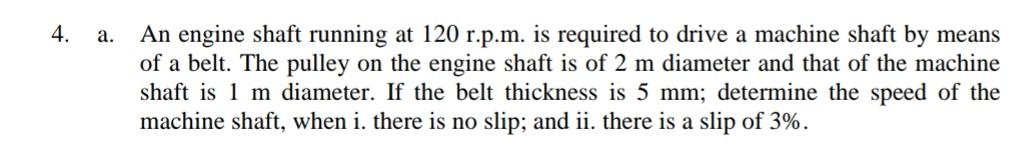

4. a. An engine shaft running at 120 r.p.m. is required to drive a machine shaft by means of a belt. The pulley on the engine shaft is of 2 m diameter and that of the machine shaft is 1 m diameter. If the belt thickness is 5 mm; determine the speed of the machine shaft, when i. there is no slip; and ii. there is a slip of 3%.
